Components & Components Location: Components

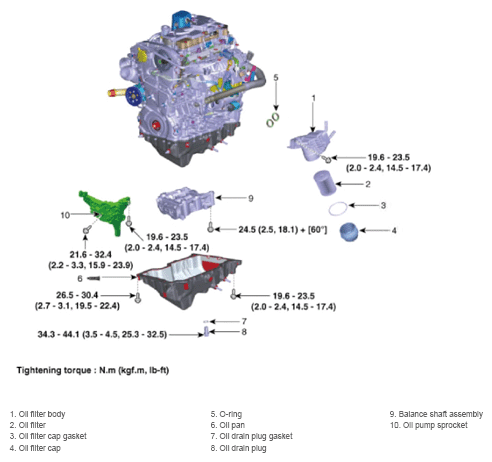

Fig 1: Lubrication System Components Location With Torque Specifications

G14720999

Courtesy of HYUNDAI MOTOR AMERICA
