Home >> Genesis >> 2021 >> GV80 2.5T Advanced, AWD >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System - 2.5L >> Intake Manifold >> Components & Components Location >> Components

Components & Components Location: Components

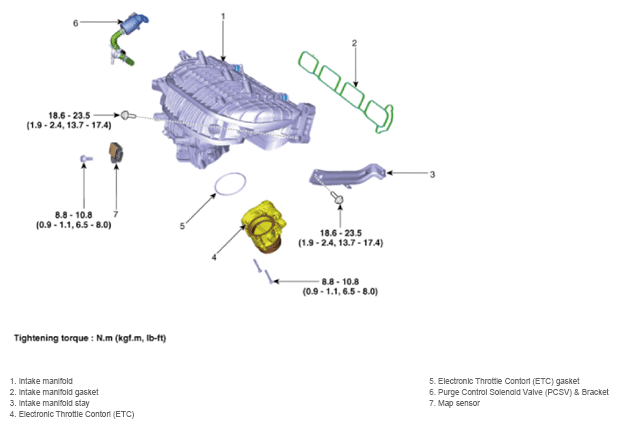

Fig 1: Intake Manifold Components Location With Torque Specifications

G14721049

Courtesy of HYUNDAI MOTOR AMERICA
