Components And Components Location: Components: AWD

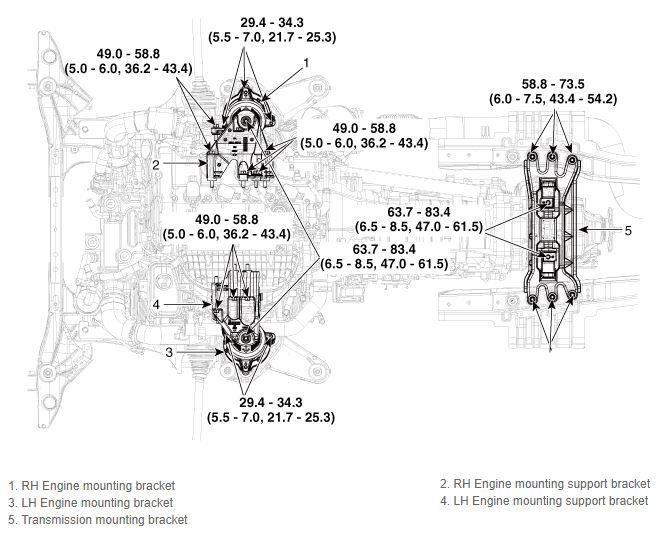

Fig 1: Engine Mounting Components Location With Torque Specifications (AWD)

G15546700

Courtesy of HYUNDAI MOTOR AMERICA
