Components And Components Location: Components: 2WD

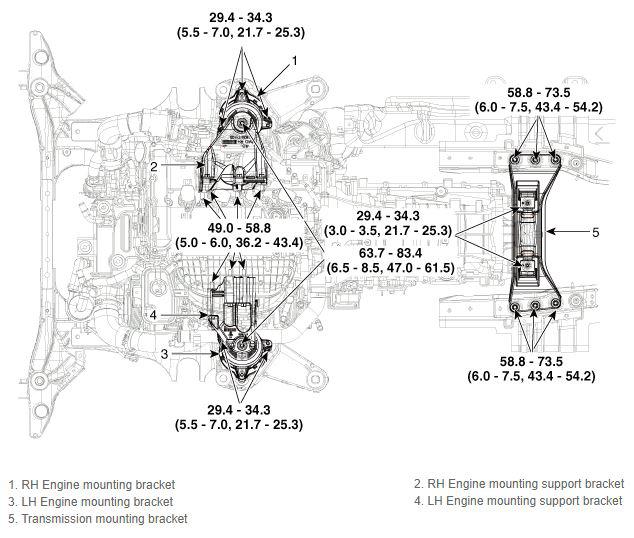

Fig 1: Engine Mounting Components Location With Torque Specifications (2WD)

G15546699

Courtesy of HYUNDAI MOTOR AMERICA
