Components And Components Location: Components

G15550110Courtesy of HYUNDAI MOTOR AMERICA
Connector

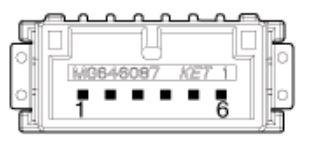

G13957209Courtesy of HYUNDAI MOTOR AMERICA
NO Description
1 Ground (LED)
2 LED (Green)
3 LED (Amber)
4 -
5 Illumination (-)
6 Illumination (+)
