Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 2.5L >> Components And Components Location >> Components

Components And Components Location: Components

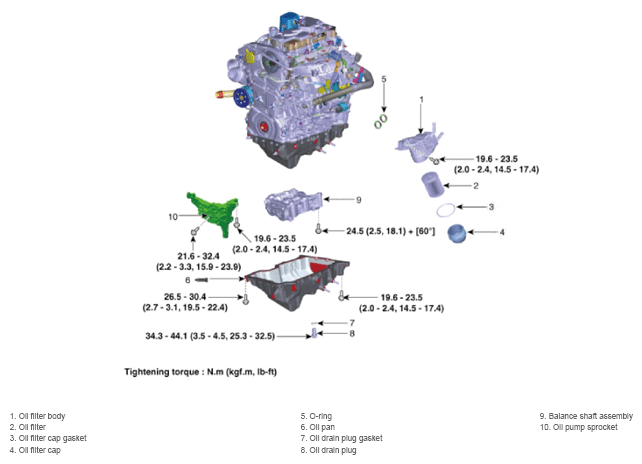

Fig 1: Engine Lubrication System Components Location With Torque Specifications

G15547015

Courtesy of HYUNDAI MOTOR AMERICA
