Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.

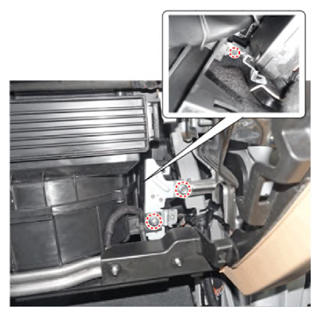

- Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING COVER ")

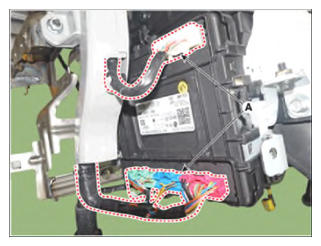

- Disconnect the connector (A) and then remove the IBU after loosening mounting bolt and nuts.
(Refer to Body - "GLOVE BOX HOUSING COVER ")
