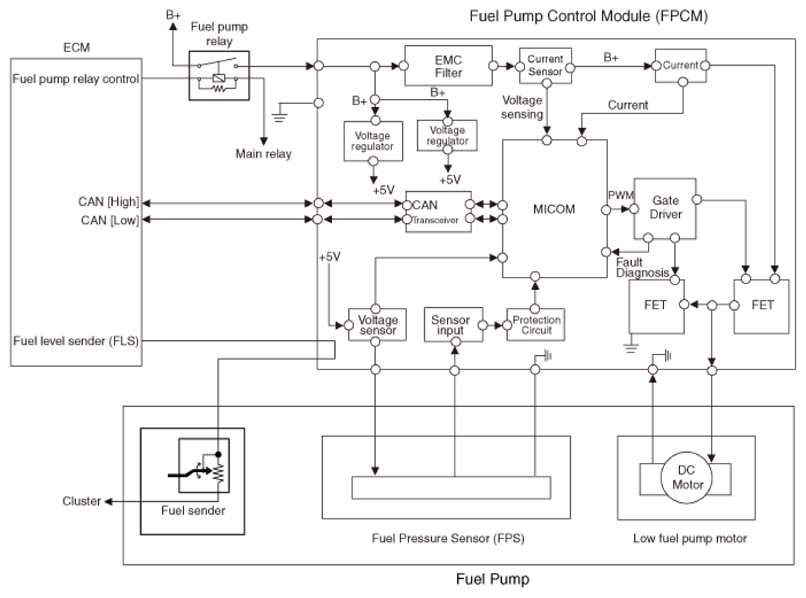

Home >> Genesis >> 2019 >> G70 3.3T Design, AWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 3.3L >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
