Components & Components Location: Components

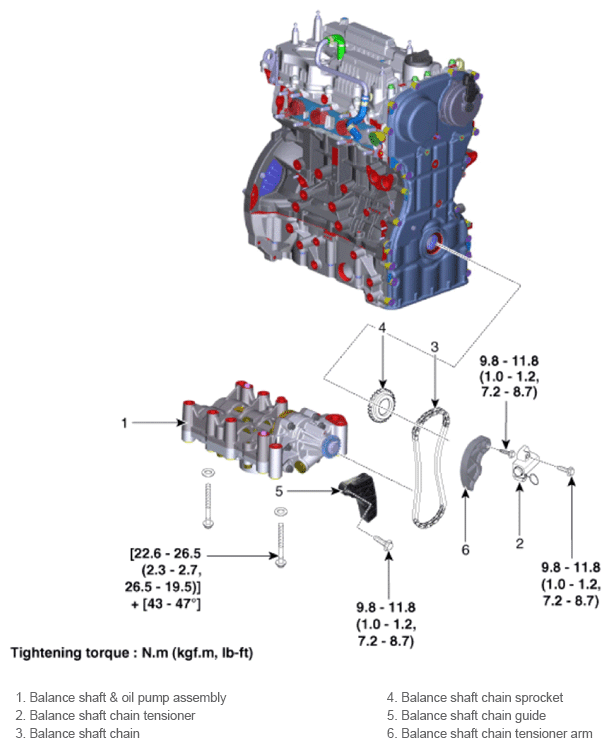

Fig 1: Balance Shaft Module Components Location With Torque Specification

G13538962

Courtesy of HYUNDAI MOTOR AMERICA
