Components and Components Location: Components

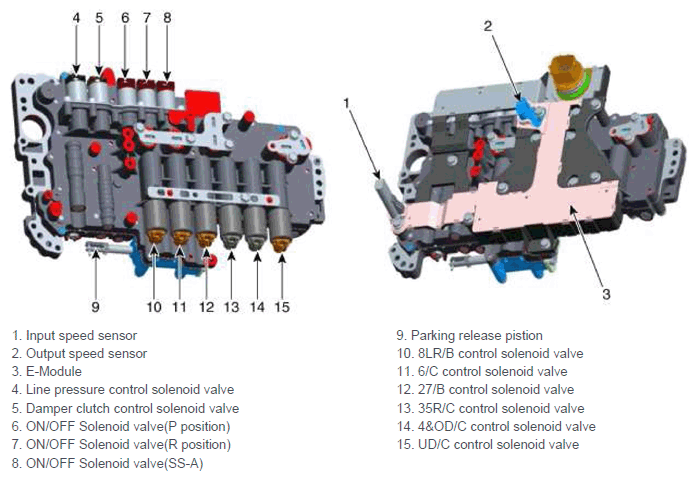

Fig 1: Locating Valve Body Components

G11404577

Courtesy of HYUNDAI MOTOR AMERICA
