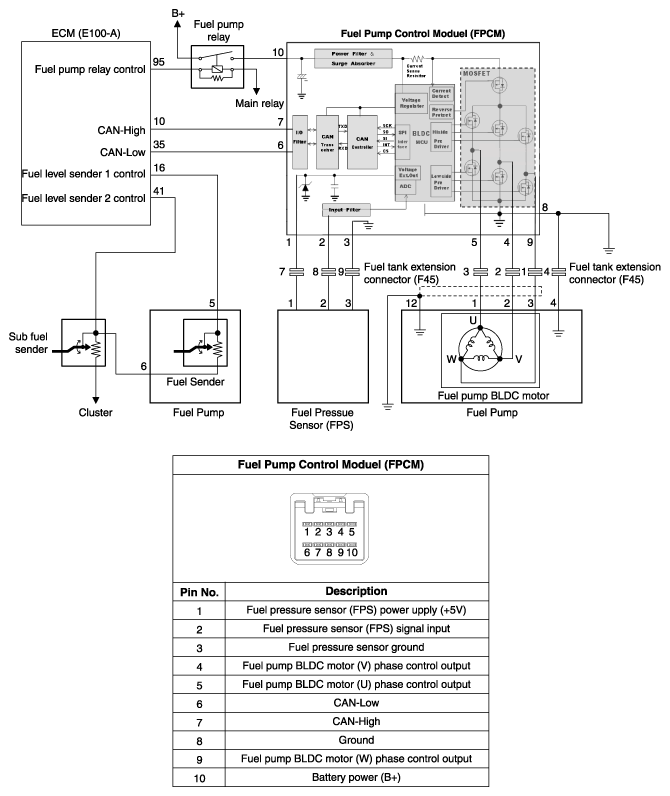

Home >> Genesis >> 2017 >> G80 5.0 Ultimate >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 5.0L >> Fuel Pump Control Module >> Schematic Diagram >> Circuit Diagram
