Home >> Genesis >> 2017 >> G80 3.8, AWD >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 3.8L >> Oil Pan >> Components and Components Location >> Components

Components and Components Location: Components

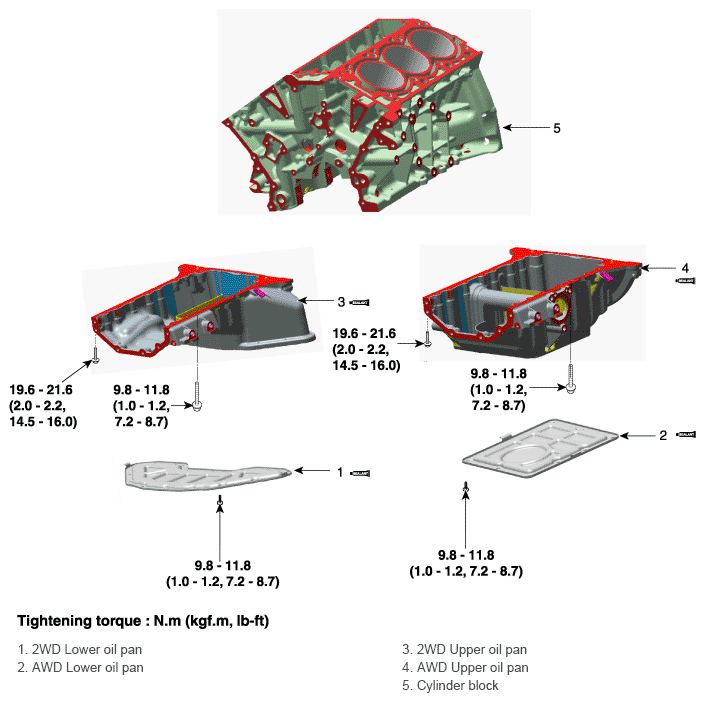

Fig 1: Exploded View Of Oil Pan Components With Torque Specifications

G11354676

Courtesy of HYUNDAI MOTOR AMERICA
