Installation Procedure

  1. GM5784690Courtesy of GENERAL MOTORS COMPANY

    Ride Control Switch (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Ride Control Switch Bracket Bolt (1) - Install and tighten [x4] Fastener Specifications
  3. GM5787236Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Front Floor Console Cup Holder Trim Plate (1) - Install
  5. GM5787899Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console (1) - Install

  6. Connect the electrical connectors to the front floor console (1).
  7. GM5776105Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

  8. Front Floor Console Bolt Access Hole Cover- Right Side (1) - Install
  9. GM5777829Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Lower Applique- Right Side (1) - Install

  10. GM5776102Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Extension Panel- Right Side (1) - Install

  11. GM5776104Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

  12. Front Floor Console Bolt Access Hole Cover - Left Side (1) - Install

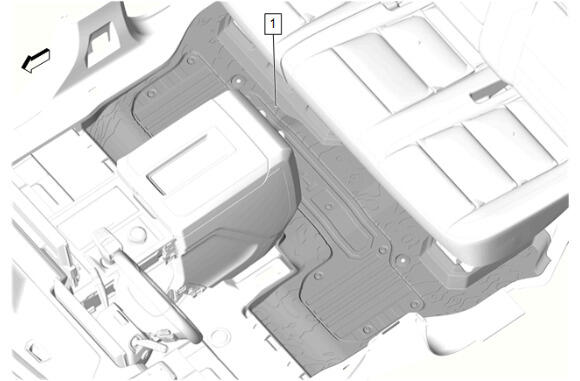

  13. GM6124682Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Rear Floor Mat (1) - Install

  14. GM5776103Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Lower Applique - Left Side (1) - Install

  15. GM5776101Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Extension Panel - Left Side (1) - Install

  16. GM5776100Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

  17. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  18. GM5776099Courtesy of GENERAL MOTORS COMPANY

    Install the left and right front floor mat (1).

  19. Return the seat to its original position.
