Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

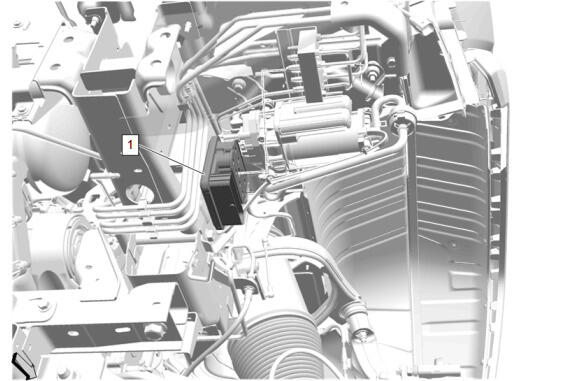

Air Suspension Control Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

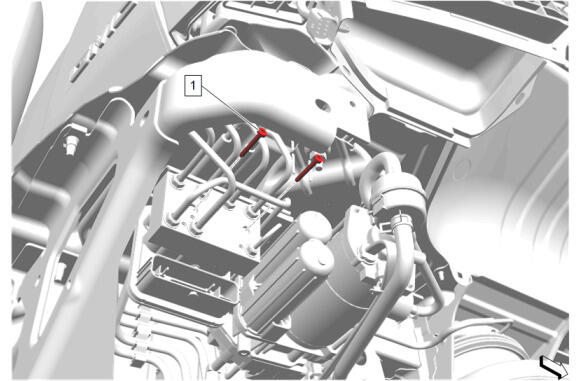

Automatic Level Control Air Compressor Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

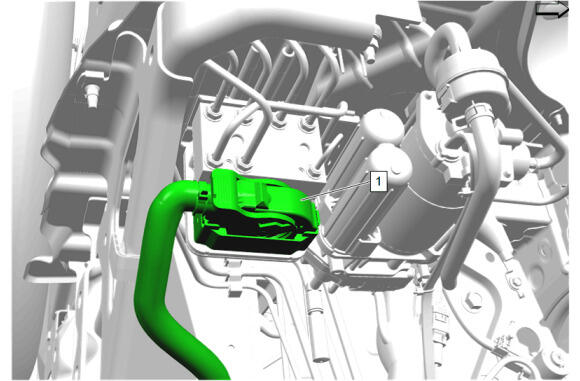

Electrical Connector (1) - Connect
Remove the support and lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install the fascia. (1) Rear Bumper Fascia Removal and Installation (GQH / GQI / GQO) , or Rear Bumper Fascia Removal and Installation (GQ2 / GQB / GQC)
After installation, program the automatic level control module. Control Module References
Perform the automatic level control trim height learn. Automatic Level Control Trim Height Learn
Install the right rear tire and wheel assembly. Tire and Wheel Removal and Installation
