Installation Procedure

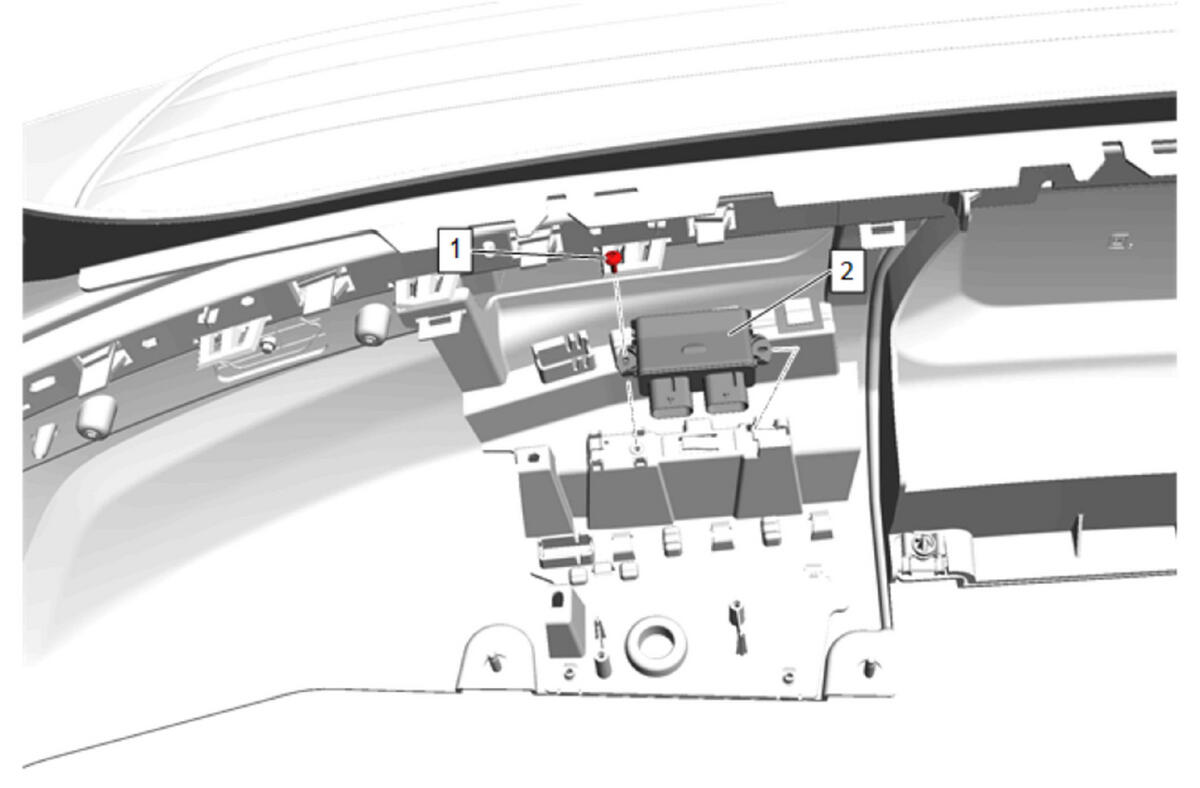

  1. GM5568823Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  2. Rear Closure Hands Free Module (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Rear Closure Hands Free Module Bolt (1) - Install and tighten - Fastener Specifications
  4. Lower the vehicle.
