Installation Procedure

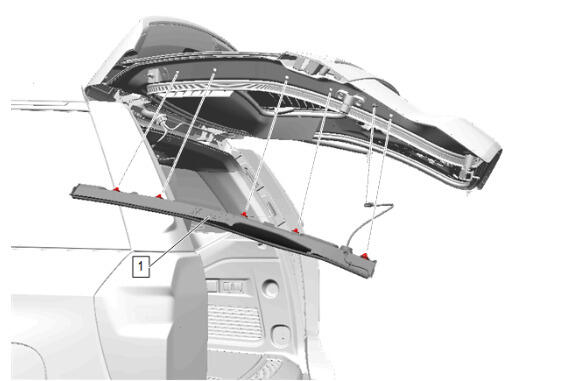

  1. GM5582560Courtesy of GENERAL MOTORS COMPANY

    Liftgate Side Sensor (1) - Install

  2. Connect the electrical connector.

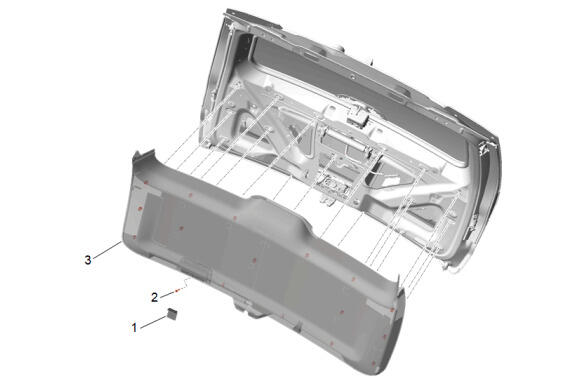

  3. GM5577873Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Liftgate Lower Trim Finish Panel (3) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Liftgate Lower Trim Finish Panel Bolt (2) - Install and tighten - Fastener Specifications
  6. Rear Compartment Lid Inner Panel Trim Hole Plug (1) - Install

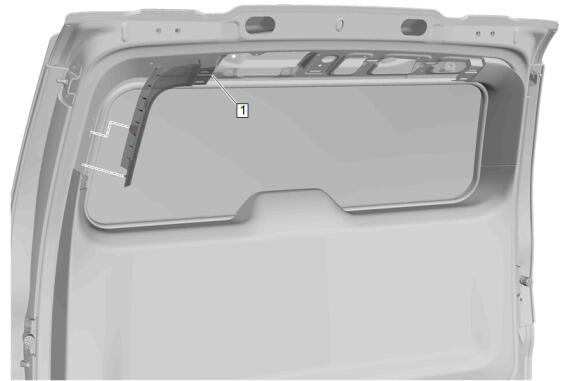

  7. GM5577872Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Side Trim Finish Panel (1) - Install [ 2x ]

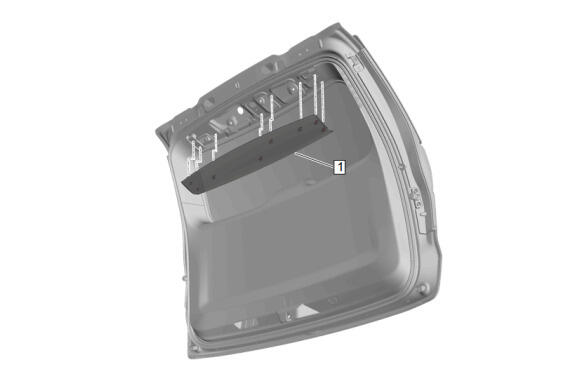

  8. GM5577870Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Center Trim Finish Panel (1) - Install

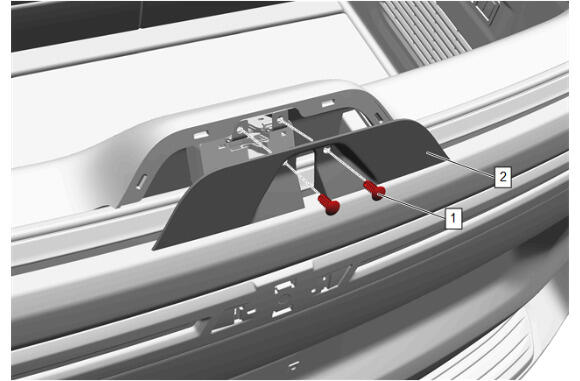

  9. GM5584398Courtesy of GENERAL MOTORS COMPANY

    Liftgate Lower Trim Finish Panel Access Hole Cover (2) - Install

  10. Liftgate Trim Finish Panel Locator (1) - Install [ 2x ]
  11. Close the liftgate window.
