Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

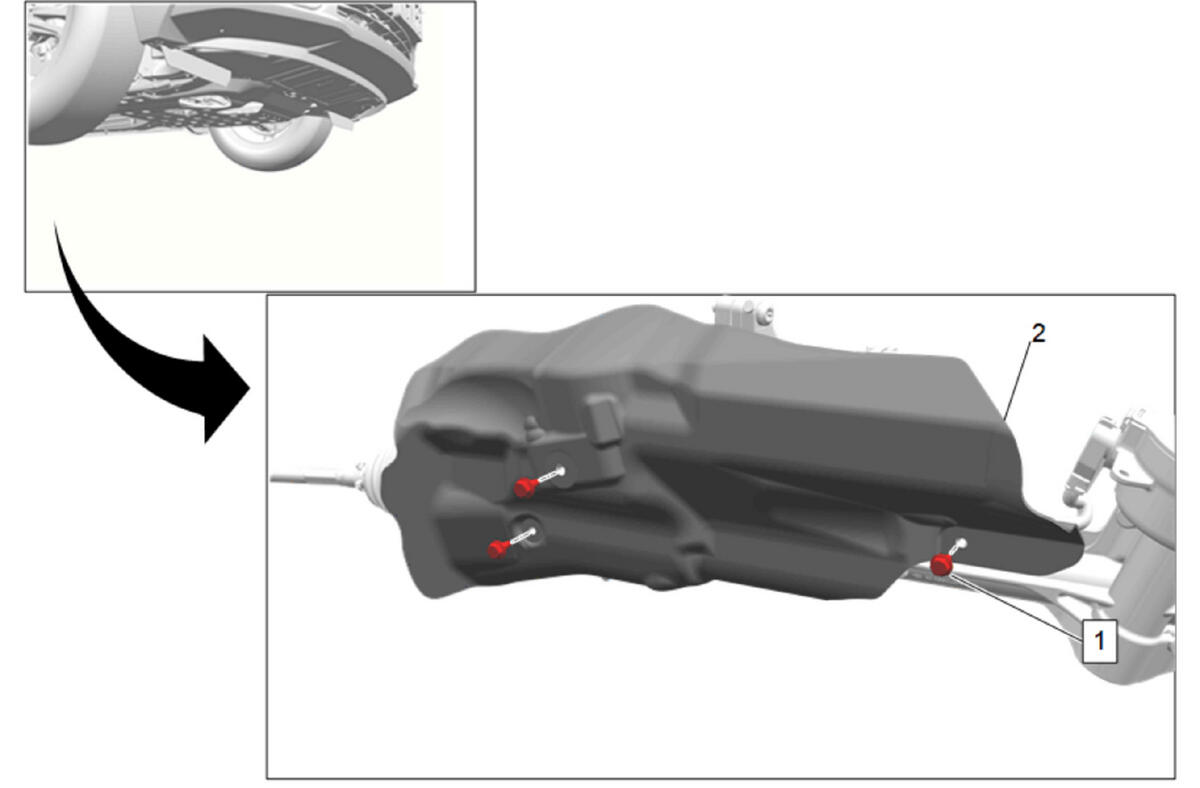

Steering Gear Heat Shield (2) - Install

CAUTION:

Refer to Fastener Caution .

Steering Gear Heat Shield Bolt (1) - Install and tighten [ 3x ] 9 N.m (80 lb/in)
Warm Up Three-Way Catalytic Converter - Install - Warm Up Three-Way Catalytic Converter Replacement (LYX)
Courtesy of GENERAL MOTORS COMPANY

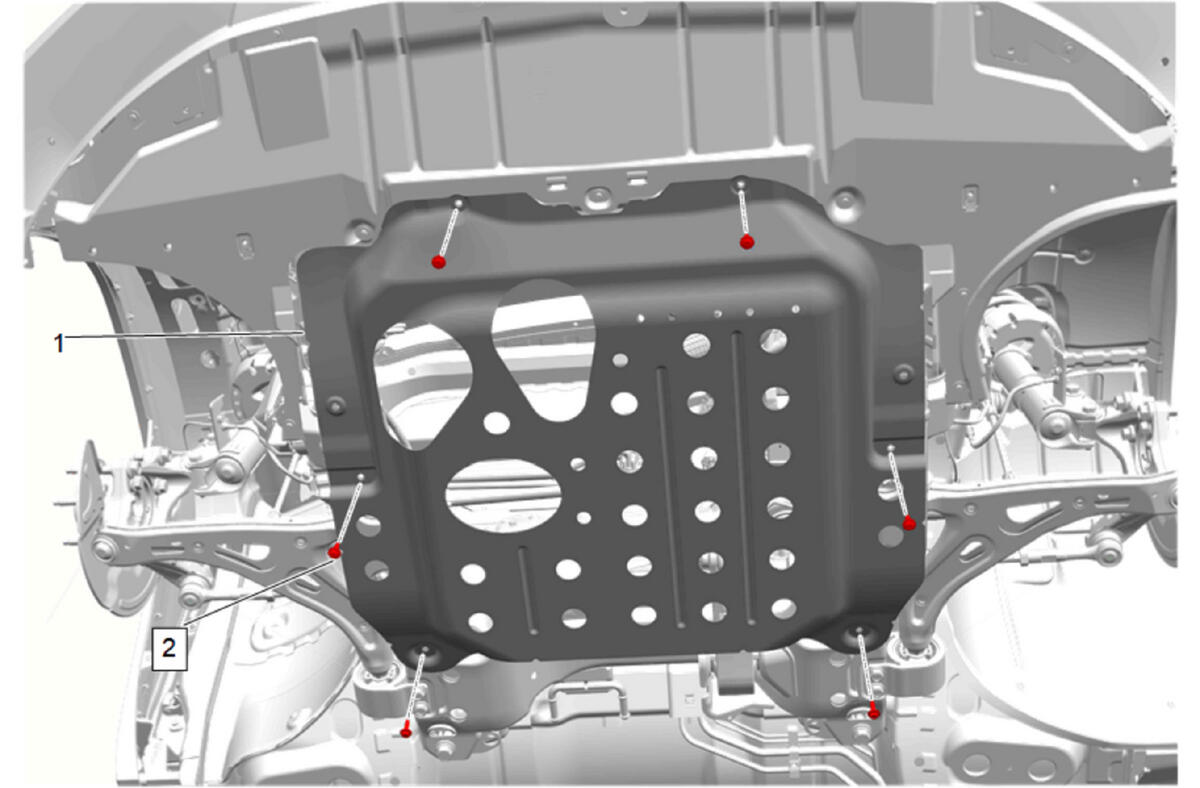

Underbody Skid Shield (1) - Install - Underbody Skid Shield Replacement
