Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

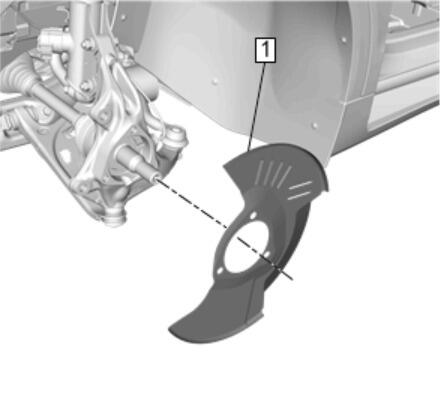

  1. GM4261549Courtesy of GENERAL MOTORS COMPANY

    Front Brake Shield (1) - Install

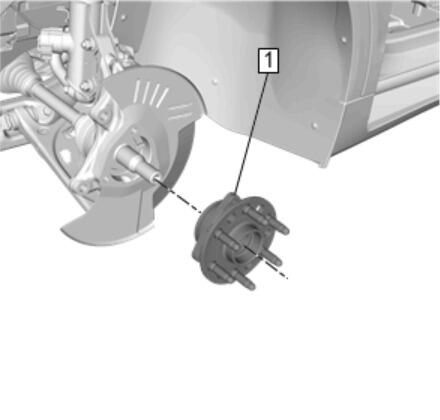

  2. GM4261544Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Bearing and Hub Assembly (1) - Install - Front Wheel Bearing and Hub Replacement

  3. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
