Liftgate Close Switch Replacement

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Liftgate Trim Finish Panel Pull Cup Replacement

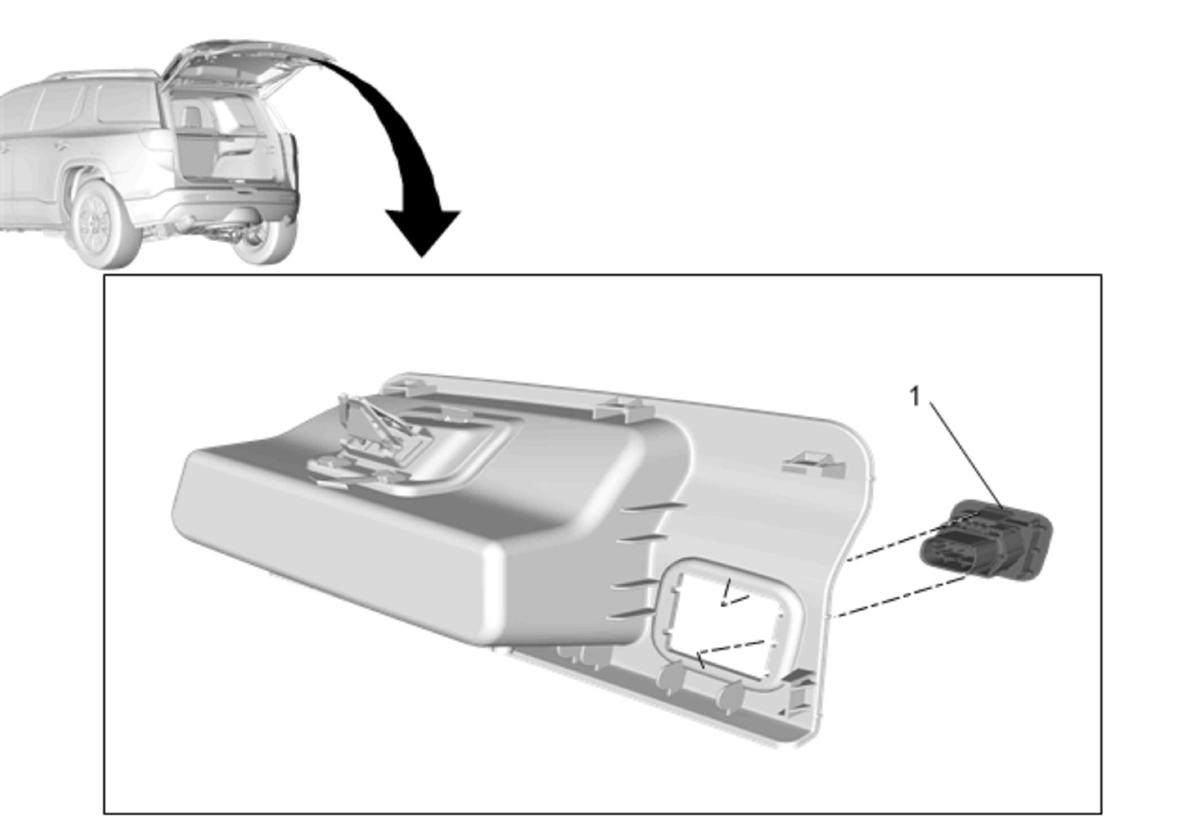

1	Liftgate Close Switch Procedure Disconnect the electrical connector. Release the liftgate close switch retainers and push out from the liftgate trim finish panel pull cup.

Callout

Component Name

Preliminary Procedure
Liftgate Trim Finish Panel Pull Cup Replacement

Liftgate Close Switch

Procedure

Disconnect the electrical connector.
Release the liftgate close switch retainers and push out from the liftgate trim finish panel pull cup.
