Home >> GMC >> 2020 >> Canyon SL >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> MYB

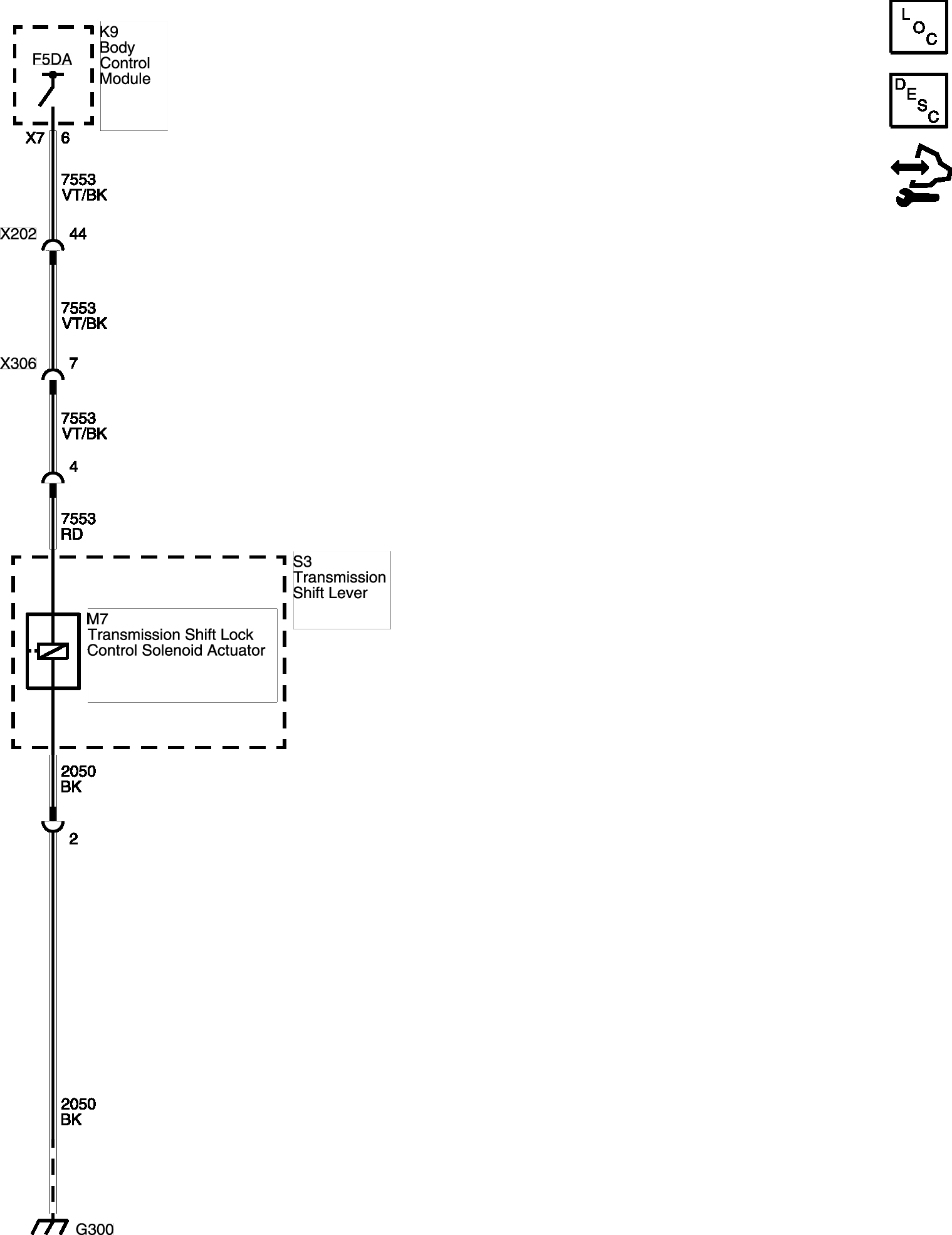

Shift Lock Control Wiring Schematics: MYB

GM5193293

Courtesy of GENERAL MOTORS COMPANY
