GMC
>>
2013
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System

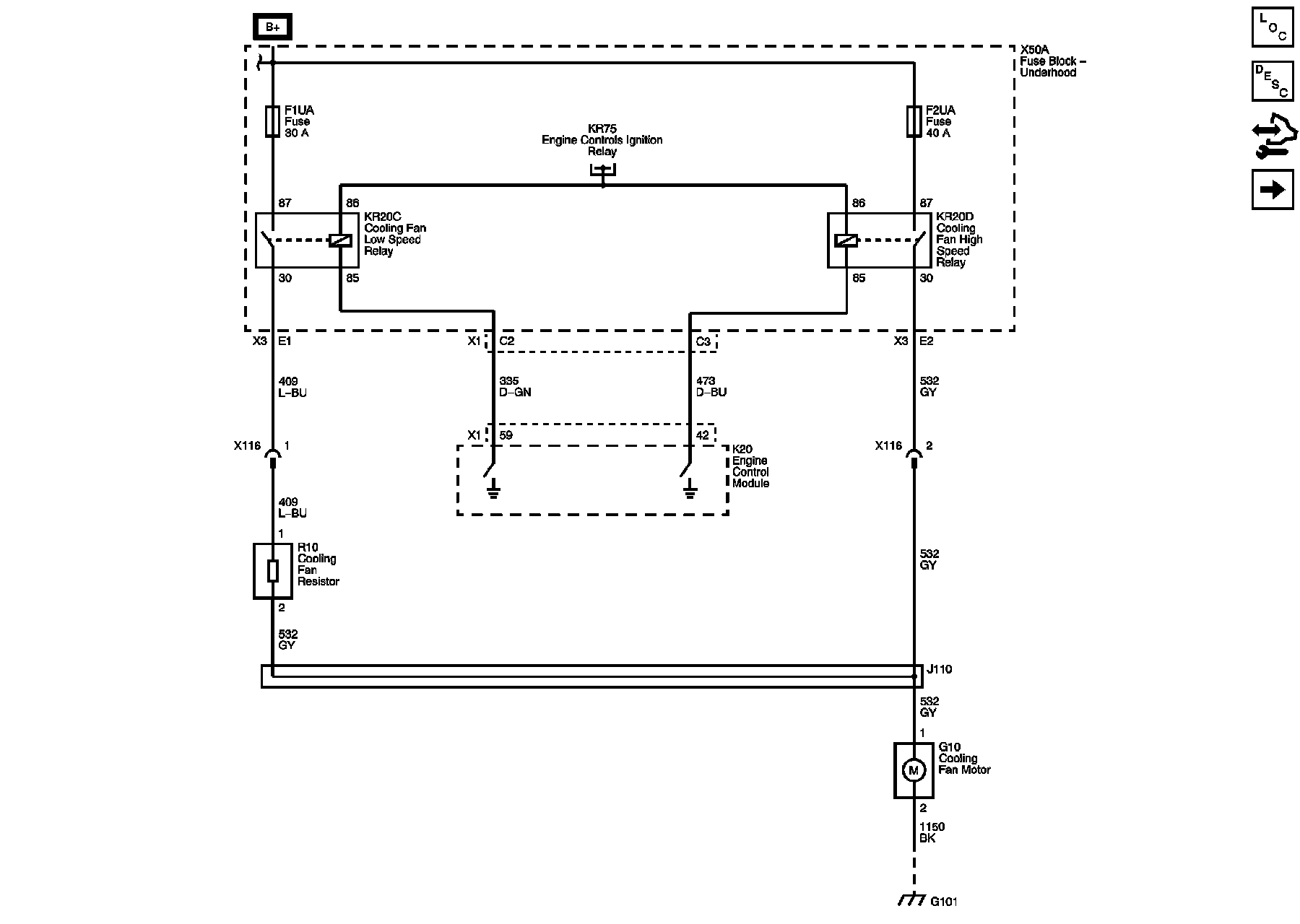

Engine Cooling Schematics
Engine Cooling Fan (LEA)
