GMC
>>
2013
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Driver/Vehicle Information Display
>>
Info Display Module (UHQ or UFU)
Info Display Module (UHQ or UFU)

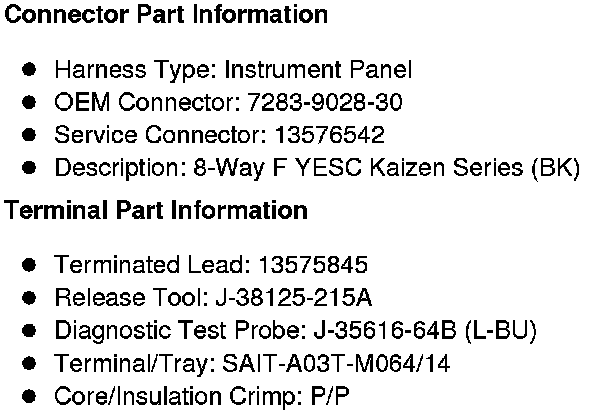

Component Connector End Views

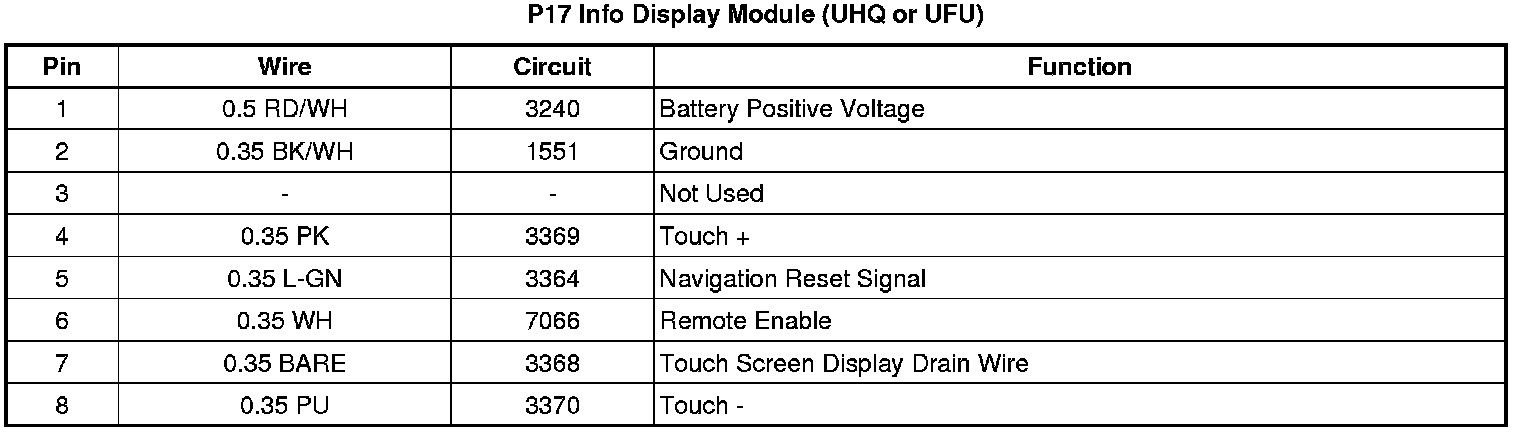

P17 Info Display Module (UHQ or UFU)
