GMC
>>
2013
>>
Sierra 1500 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Control Module
>>
Diagrams
>>
Transmission Control Module (TCM) (M30)
Transmission Control Module (TCM) (M30)

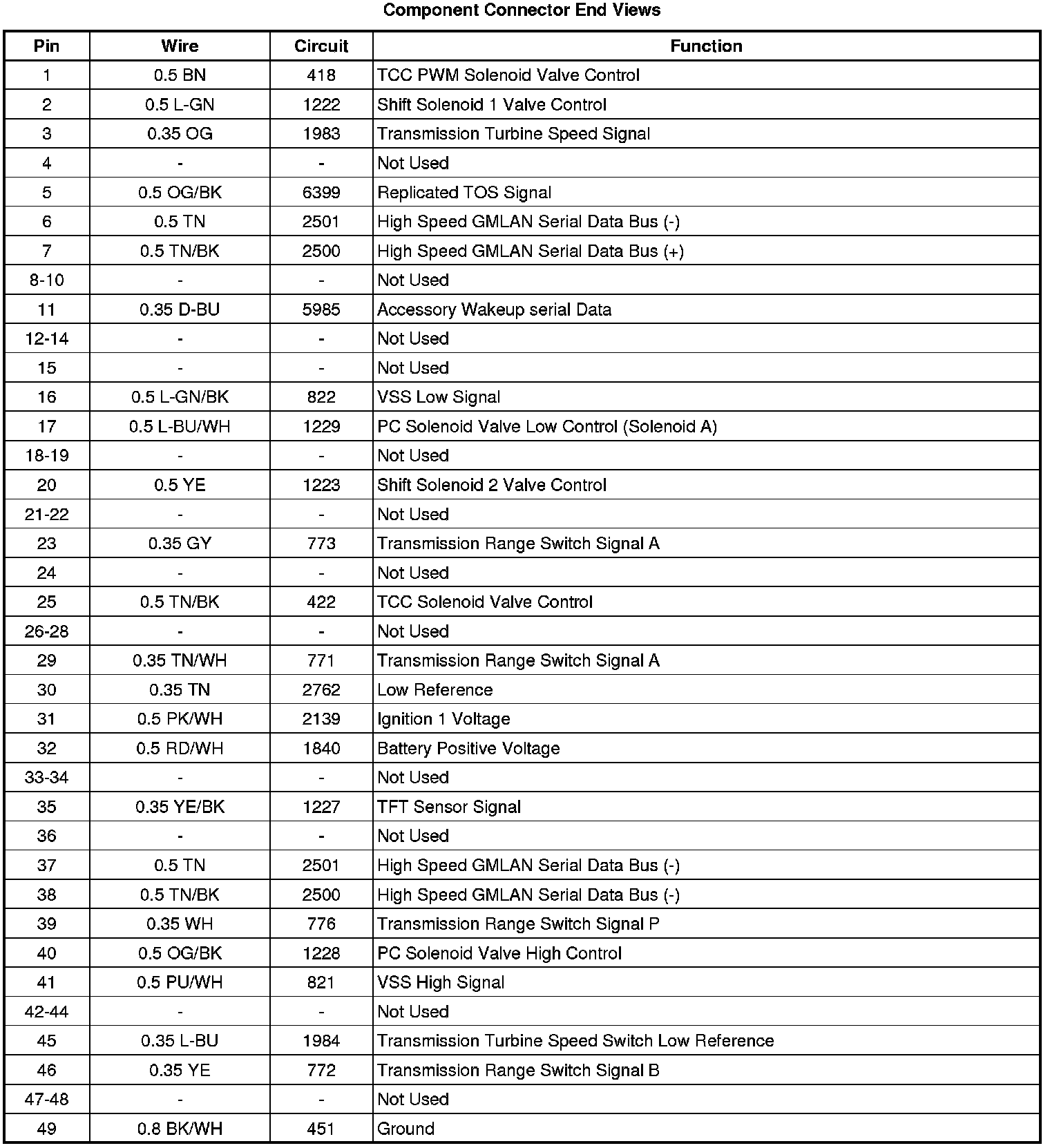

Component Connector End Views
Transmission Control Module (TCM) (M30)
