Behind the I/P Components (CJ2)

Instrument Panel/Center Console Component Views

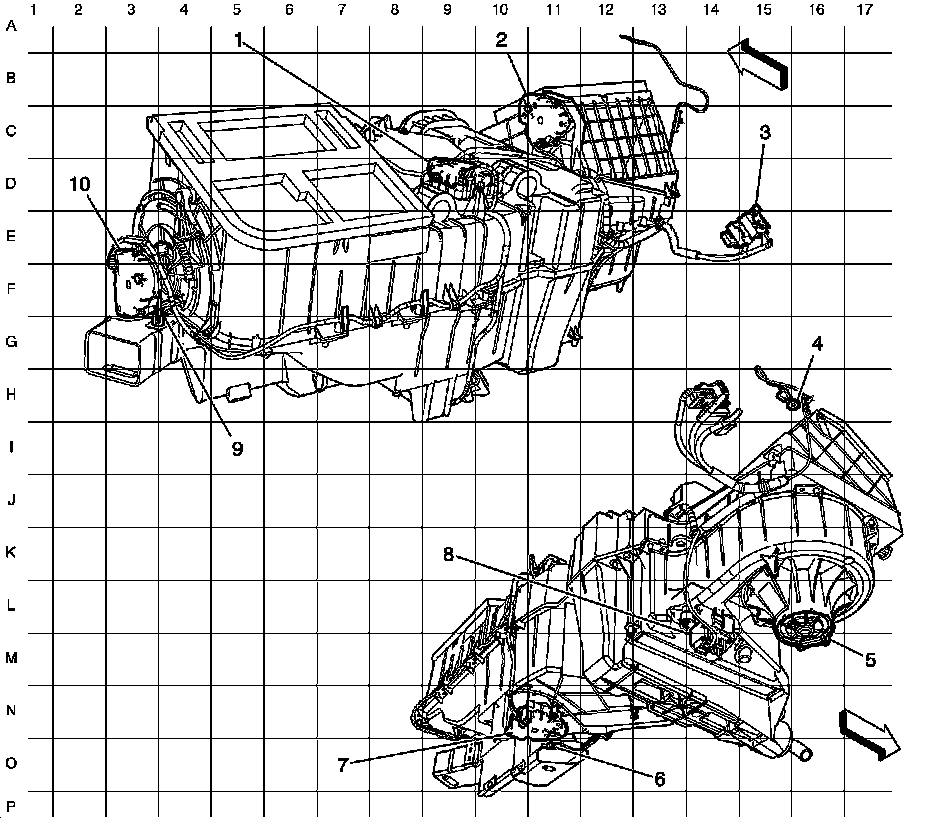

Behind the I/P Components (CJ2)





1 - Air Temperature Actuator - Right

2 - Recirculation Actuator

3 - Junction Block - Right I/P X4

4 - G200

5 - Blower Motor

6 - Air Temperature Sensor - Lower Right

7 - Air Temperature Actuator - Left

8 - Blower Motor Control Module

9 - Air Temperature Sensor - Lower Left

10 - Mode Actuator
