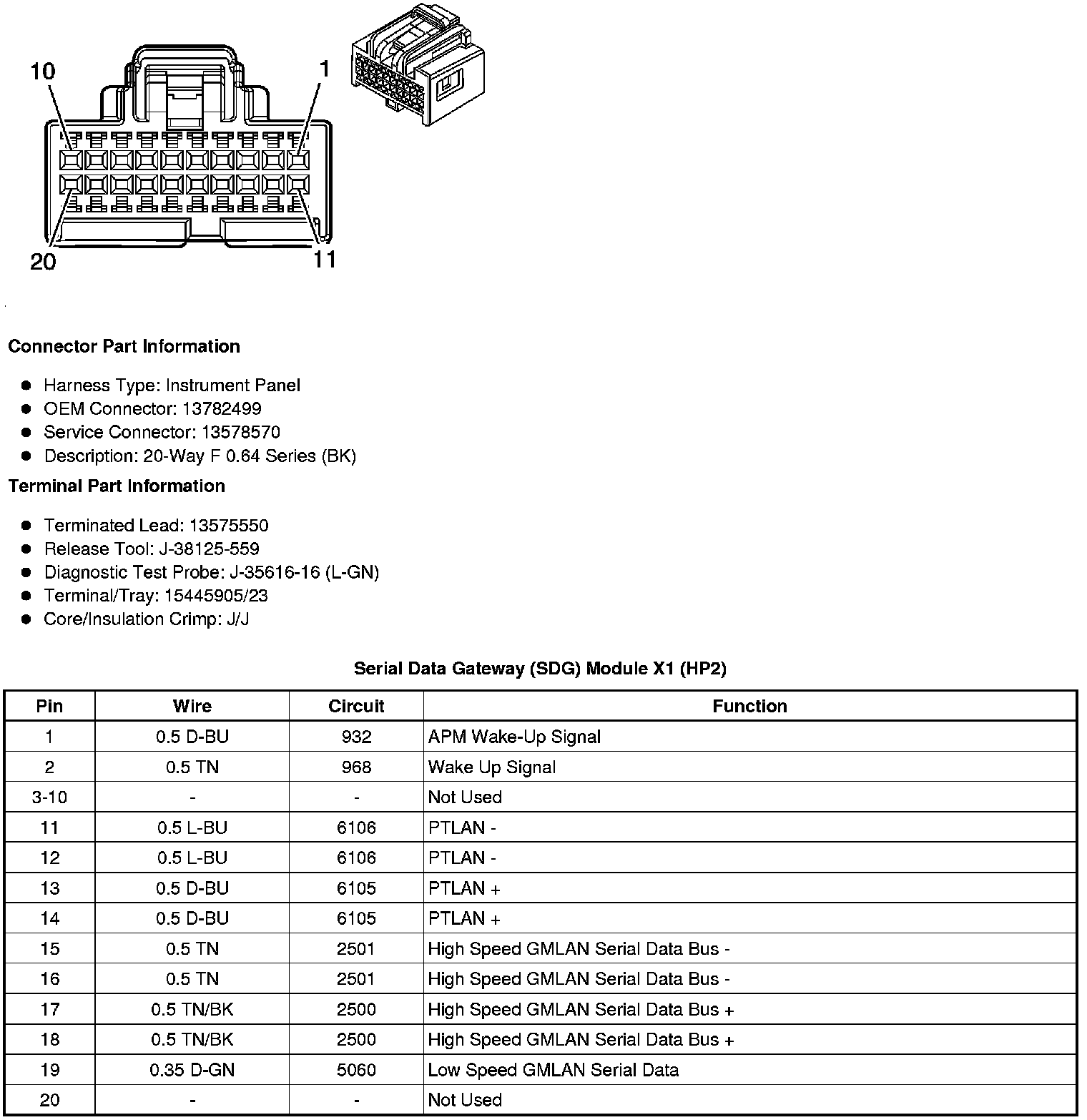

Home >> GMC >> 2012 >> Yukon 2WD V8-6.0L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Diagrams >> Connector Views >> Serial Data Gateway (SDG) Module X1
