Fuel Tank Pressure Sensor: Service and Repair

Fuel Tank Pressure Sensor Replacement

Removal Procedure




1. Remove the fuel tank. Refer to Fuel Tank Replacement Removal and Replacement.

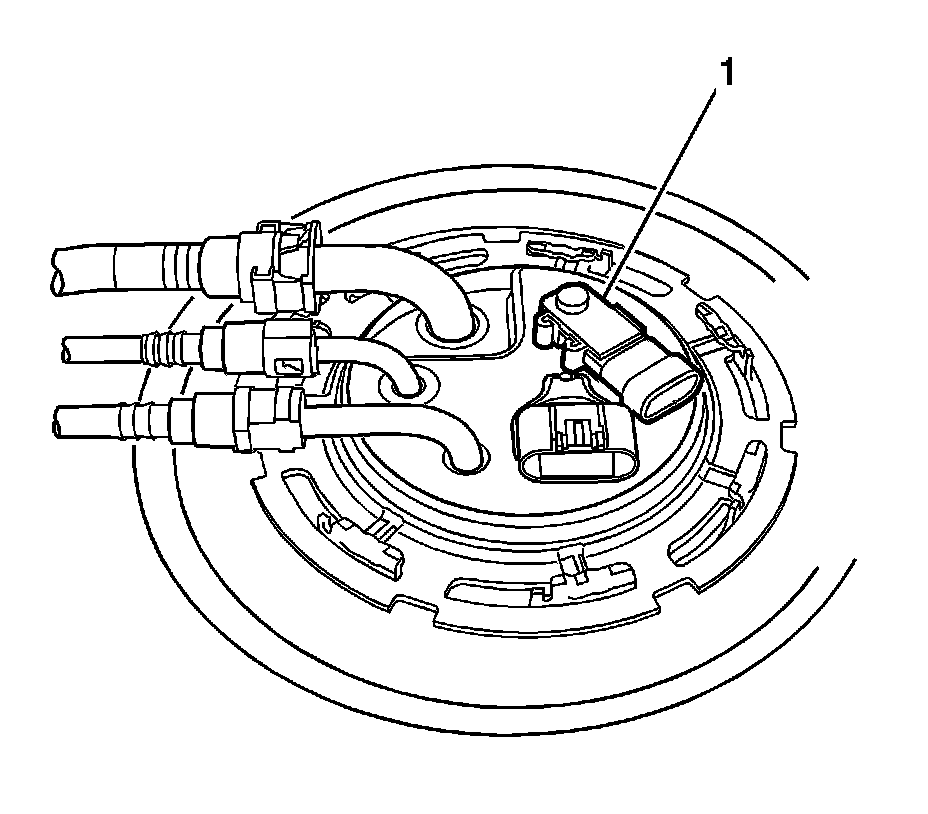

2. Using a slight rocking motion while pulling straight up, remove the fuel tank pressure sensor (1).

Installation Procedure




1. Install the fuel tank pressure sensor (1).
2. Install the fuel tank. Refer to Fuel Tank Replacement Removal and Replacement.
