Seat Temperature Control Module
>>
Diagrams
>>

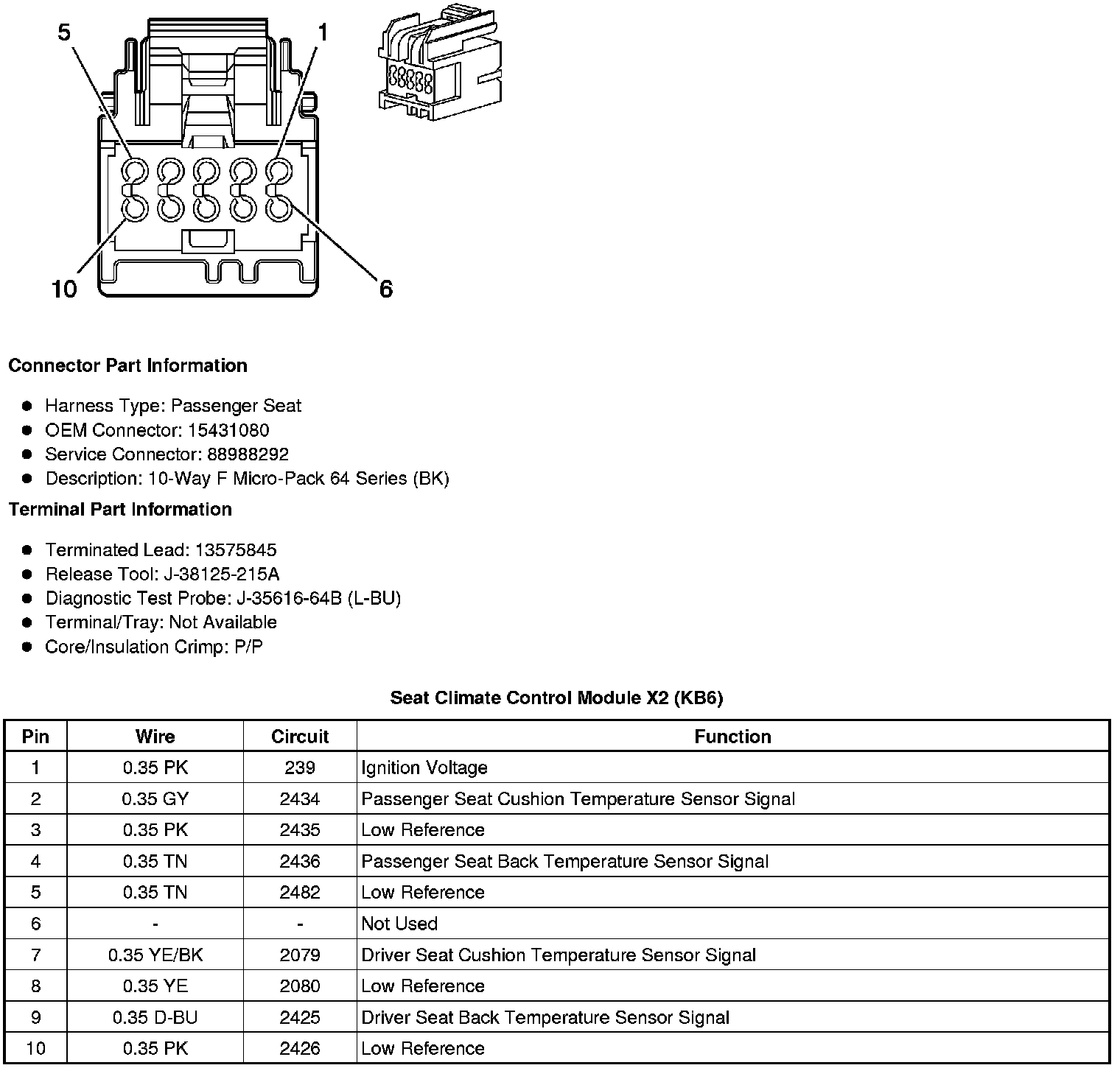

Seat Climate Control Module X2 (KB6)
Seat Climate Control Module X2 (KB6)
Component Connector End Views
Seat Climate Control Module X2 (KB6)
