Home >> GMC >> 2012 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Differential Lock >> Control Unit >> Service and Repair >> Rear Wheel Drive Module Clutch Housing Replacement

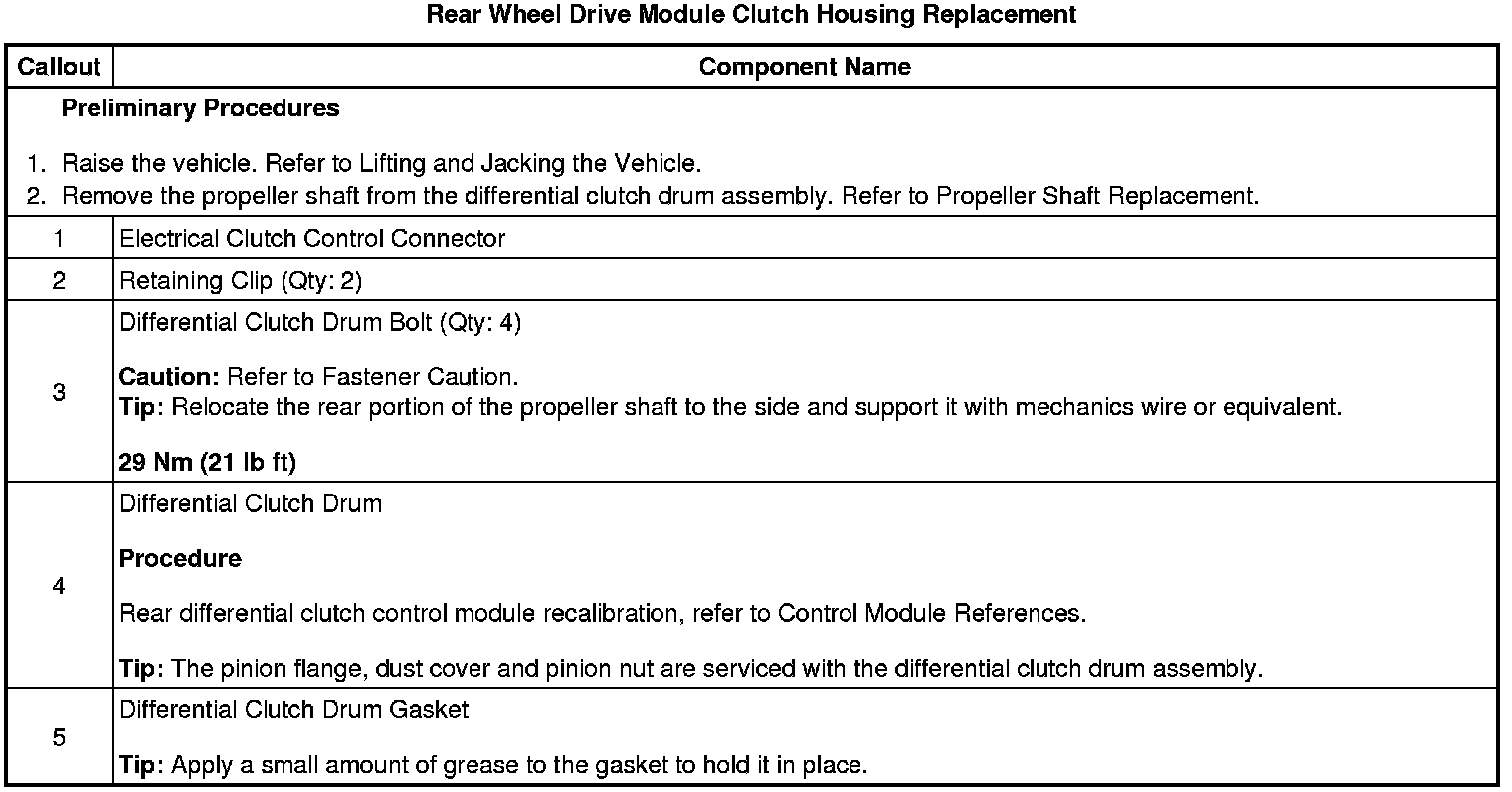

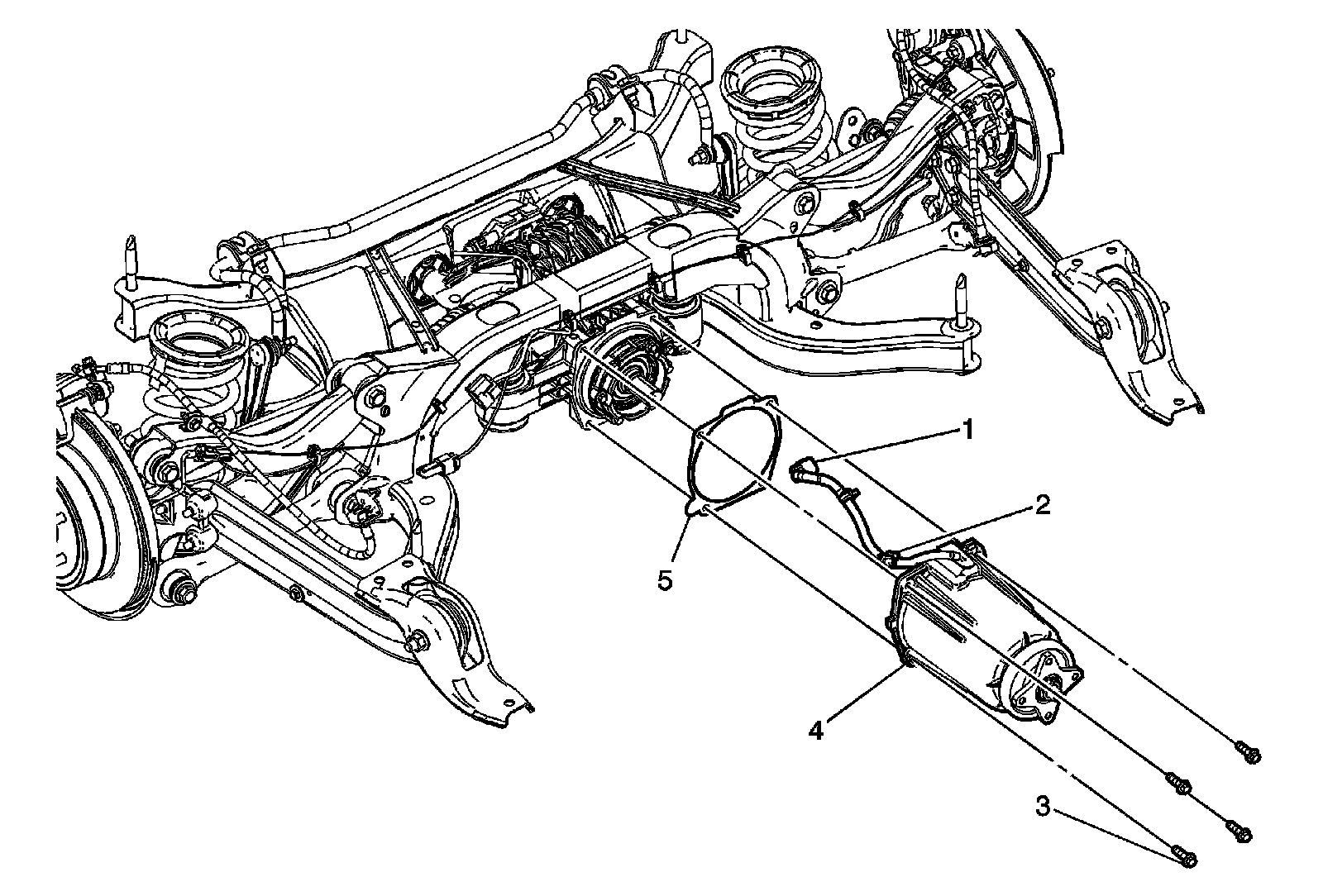

Rear Wheel Drive Module Clutch Housing Replacement




Rear Wheel Drive Module Clutch Housing Replacement
