Home >> GMC >> 2012 >> Terrain AWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Differential Cover >> Service and Repair

Differential Cover: Service and Repair

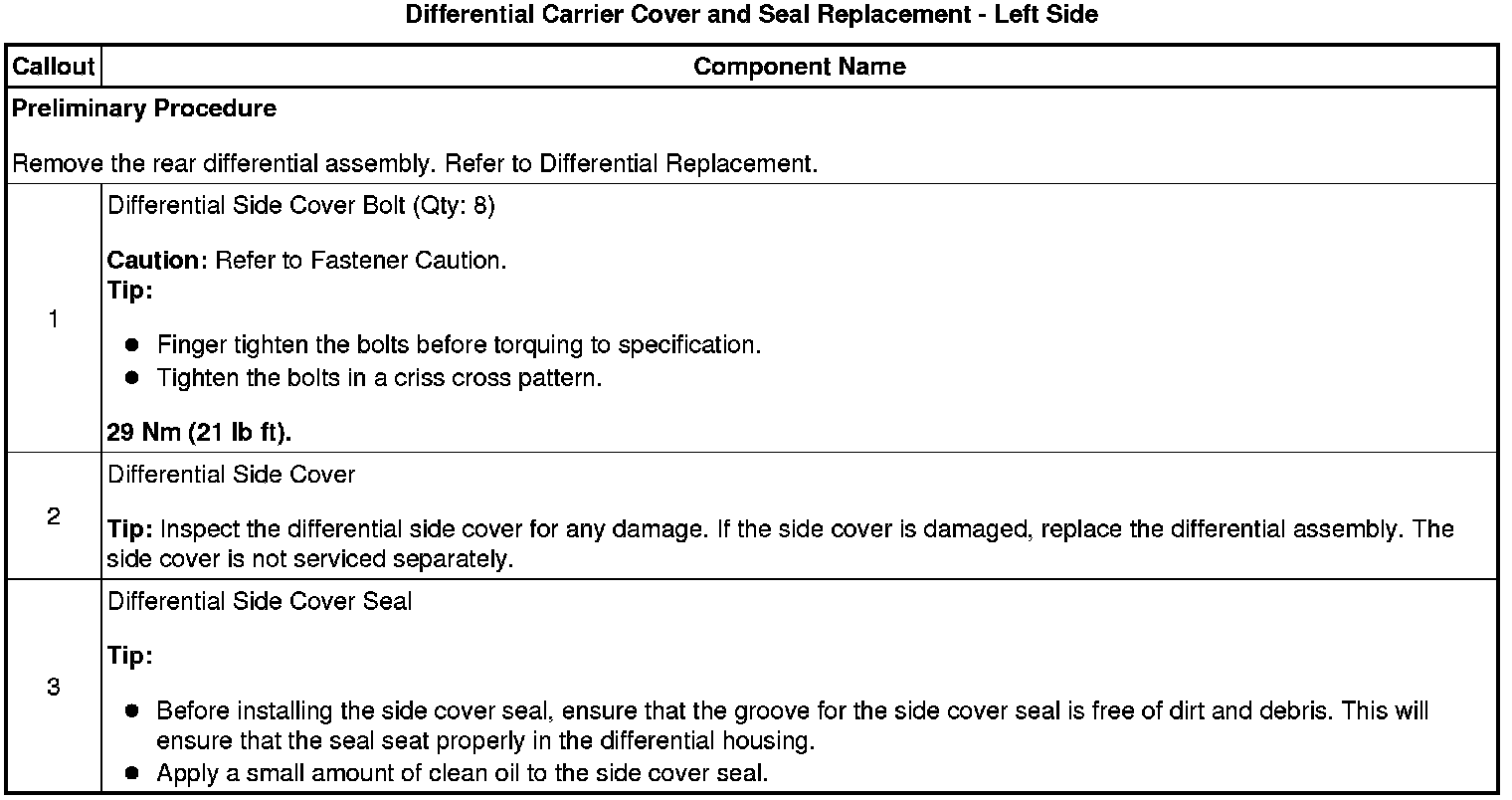

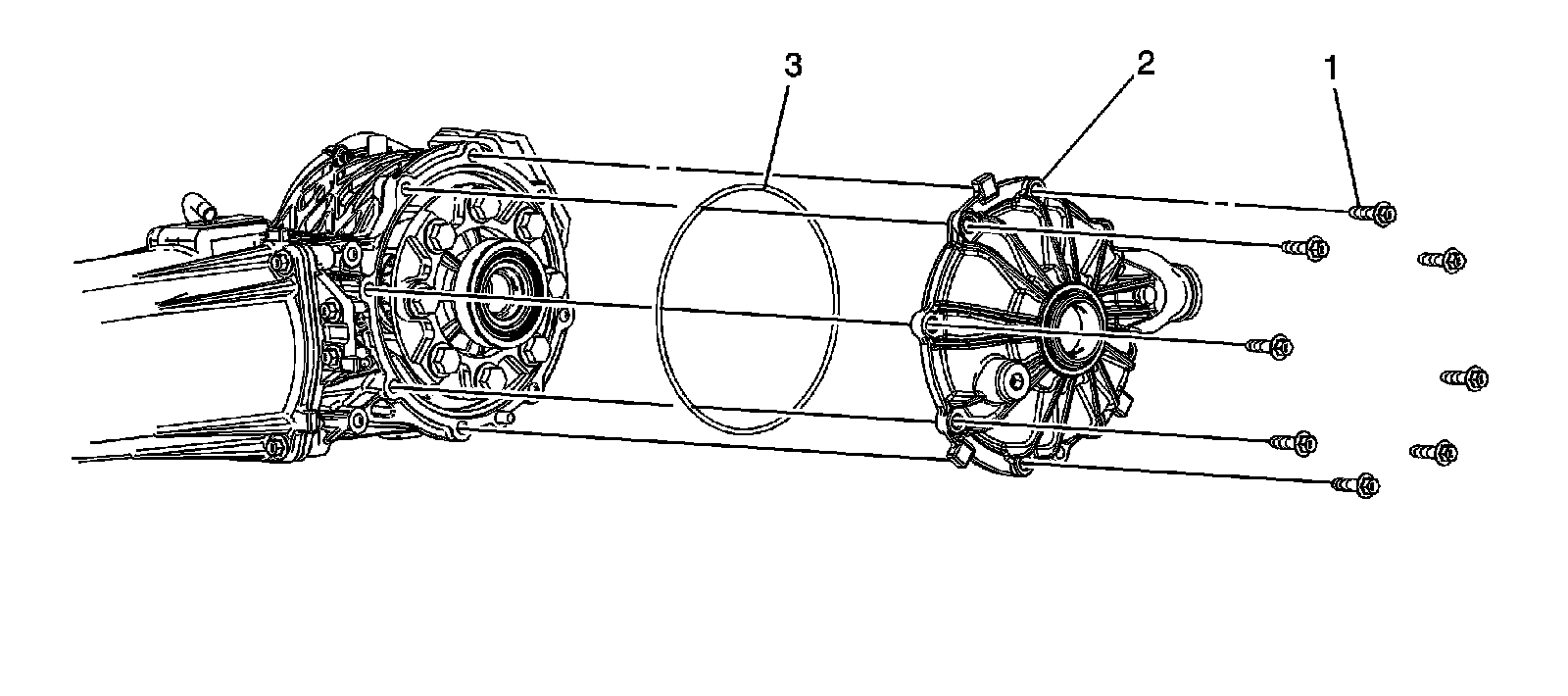

Differential Carrier Cover and Seal Replacement - Left Side
