Accessory Relay: Locations




Electrical Center Identification Views

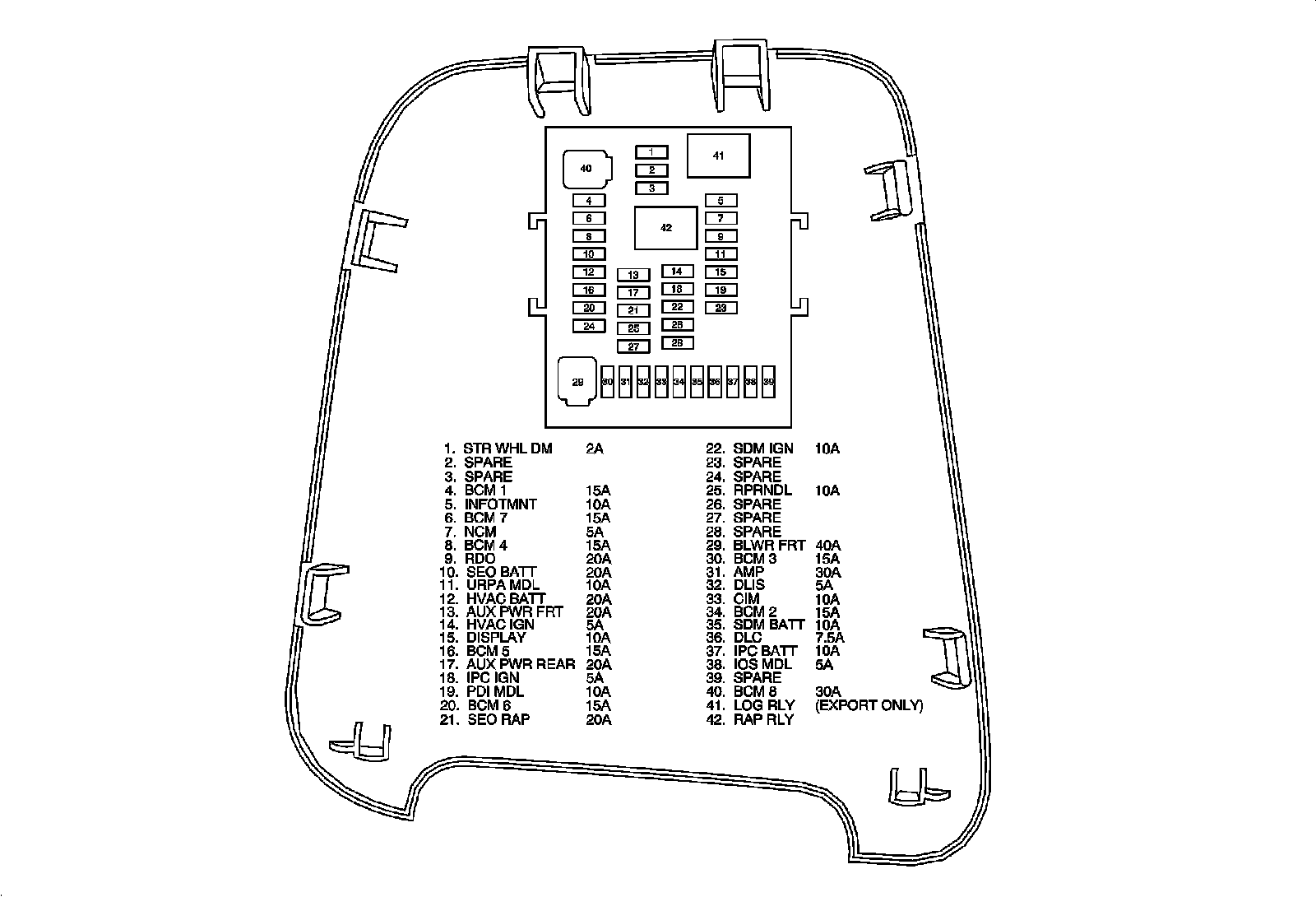

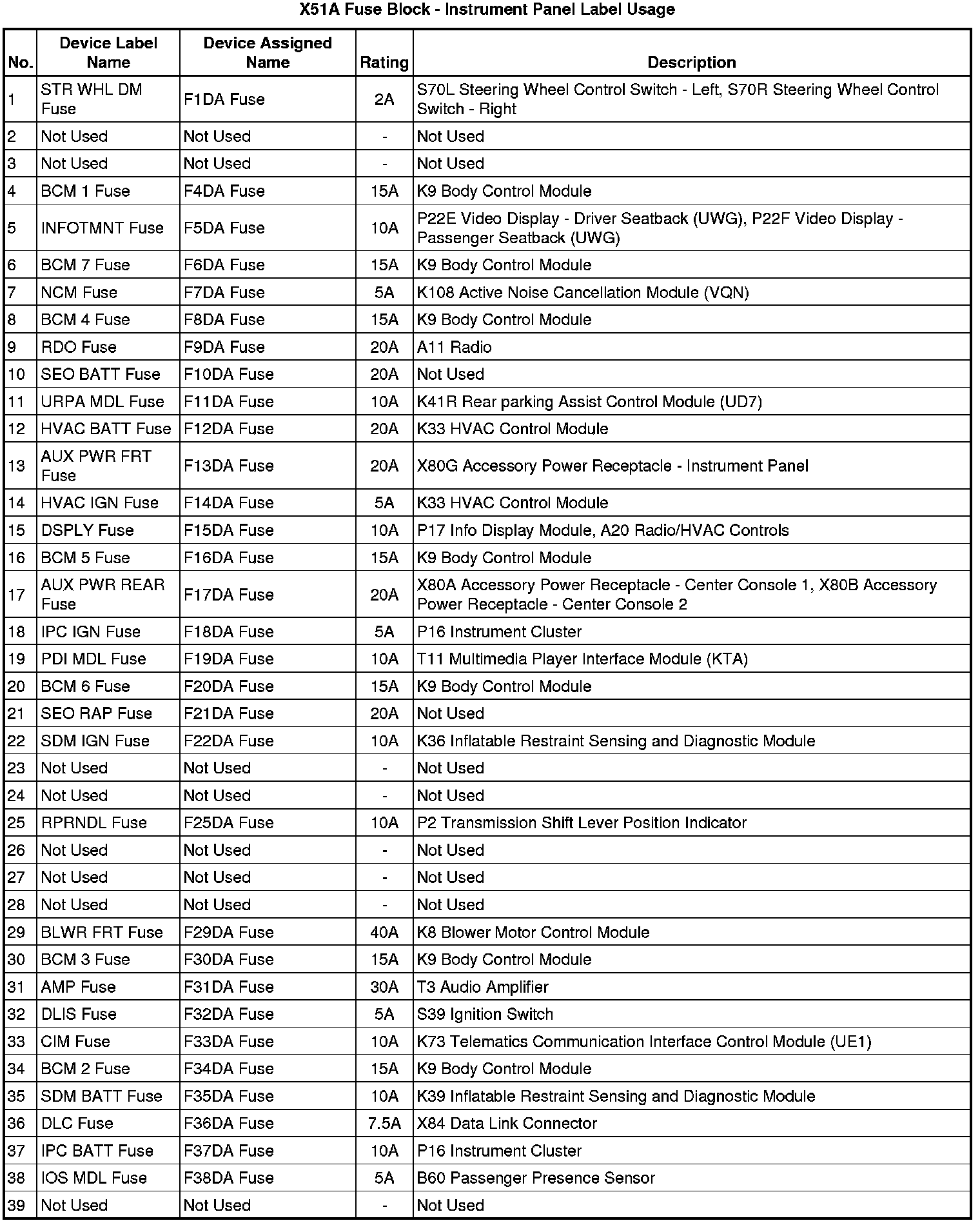

X51A Fuse Block - Instrument Panel Label
