GMC
>>
2012
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Radio/HVAC Control
Radio/HVAC Control
Component Connector End Views

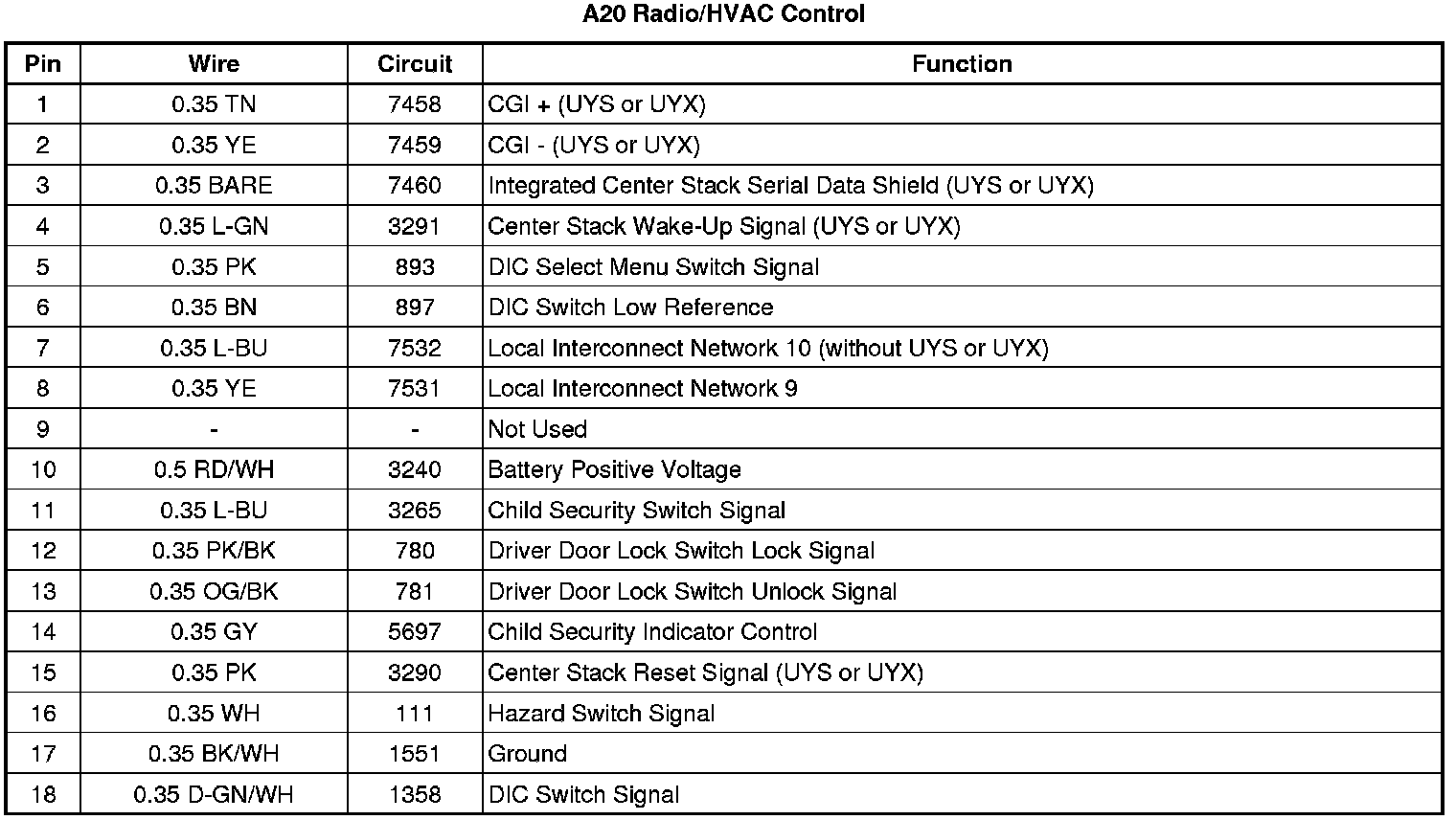

A20 Radio/HVAC Control
