GMC
>>
2012
>>
Terrain AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Audio Amplifier X2
Audio Amplifier X2
Component Connector End Views

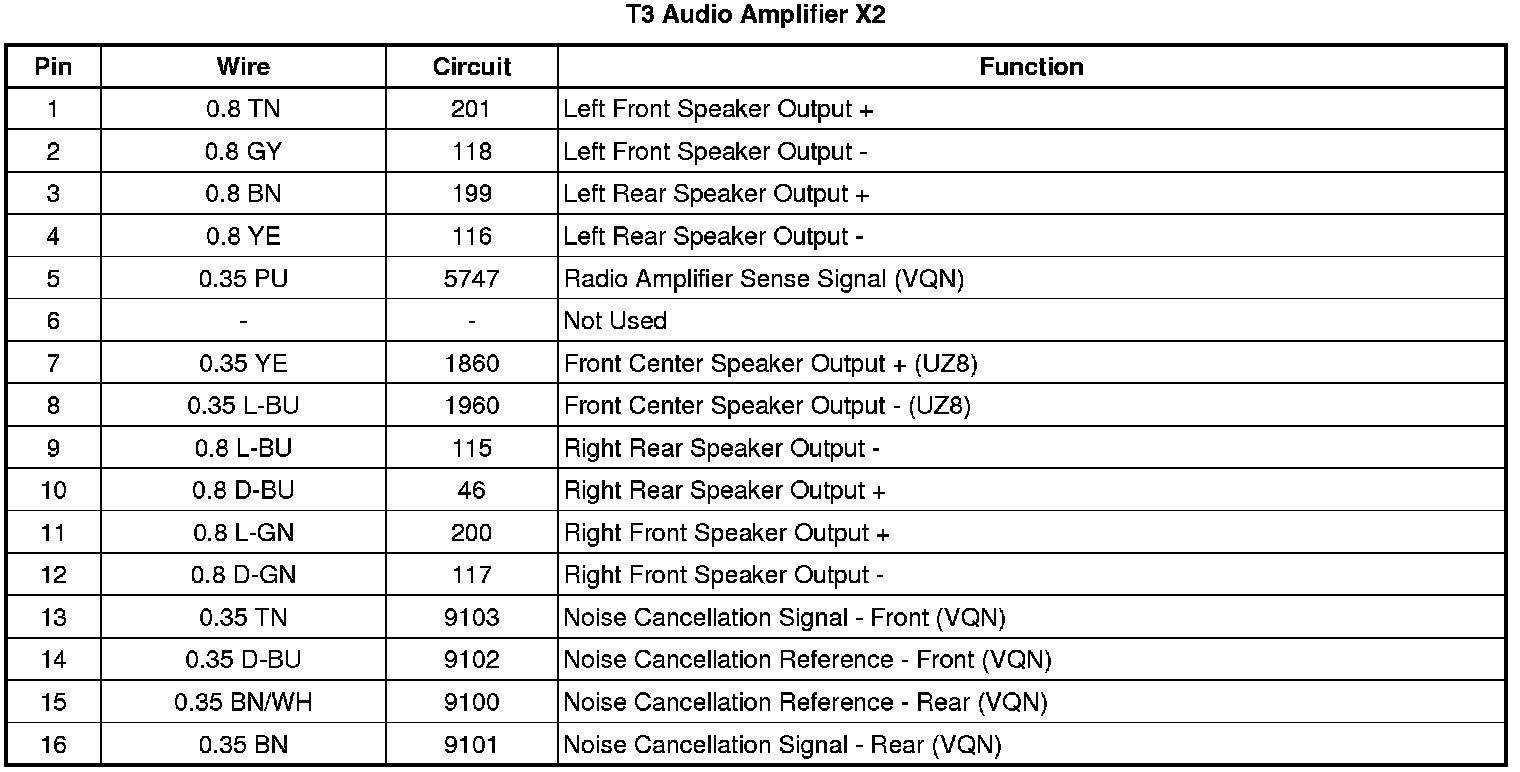

T3 Audio Amplifier X2
