Vehicle Speed Sensor: Diagrams




Component Connector End Views

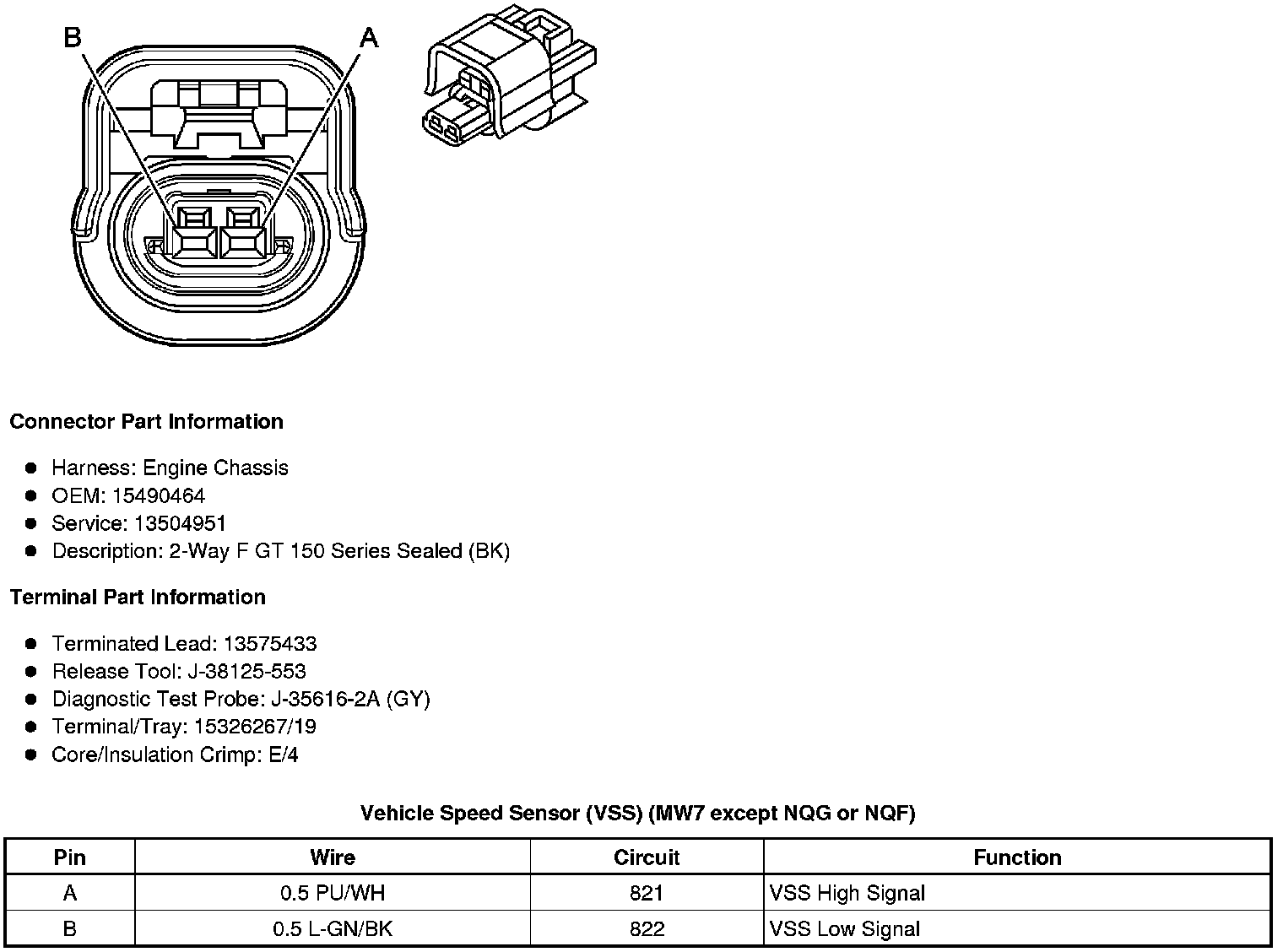

Vehicle Speed Sensor (VSS) (MW7 except NQG or NQF)
