Fuel Pressure Sensor: Diagrams

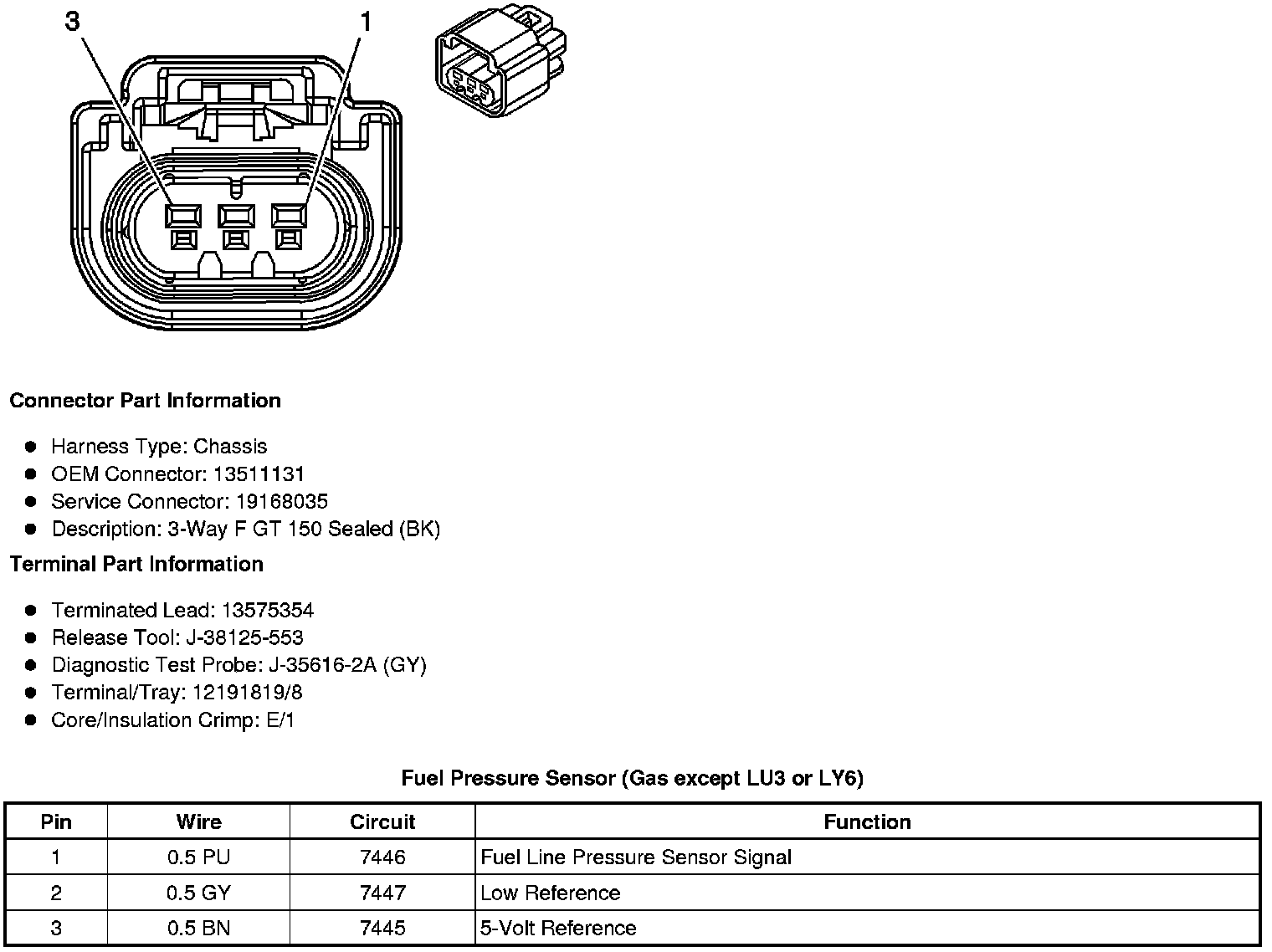

Component Connector End Views

Fuel Pressure Sensor (Gas except LU3 or LY6)
