Glow Plug Control Module: Diagrams

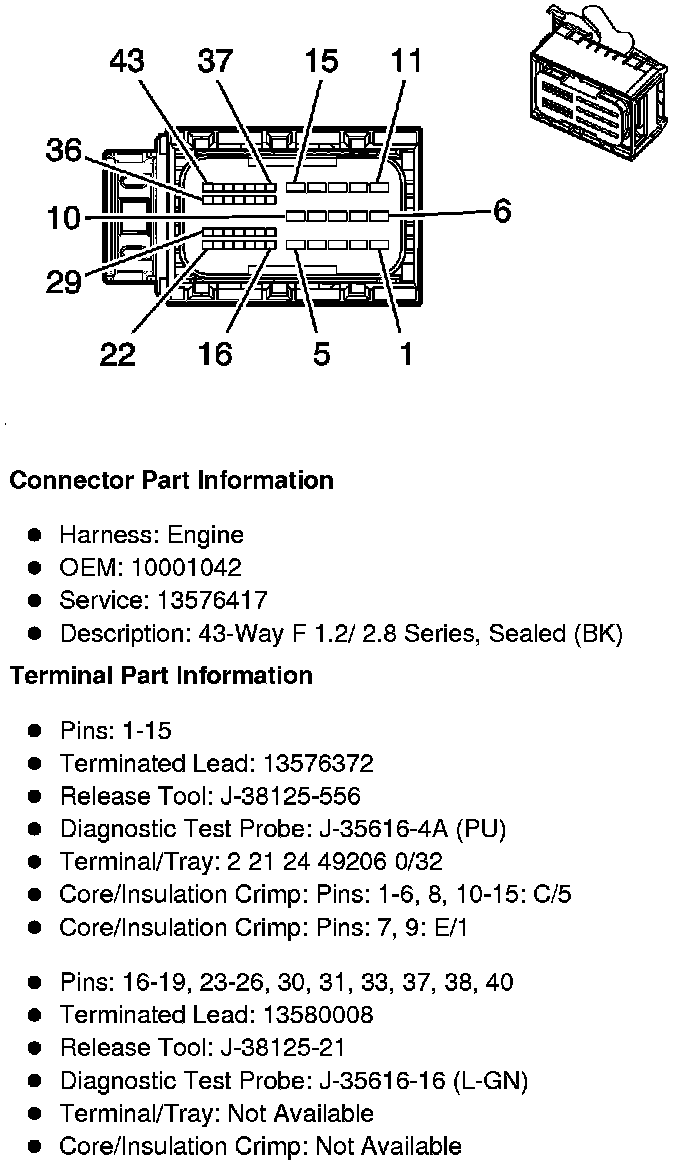

Component Connector End Views

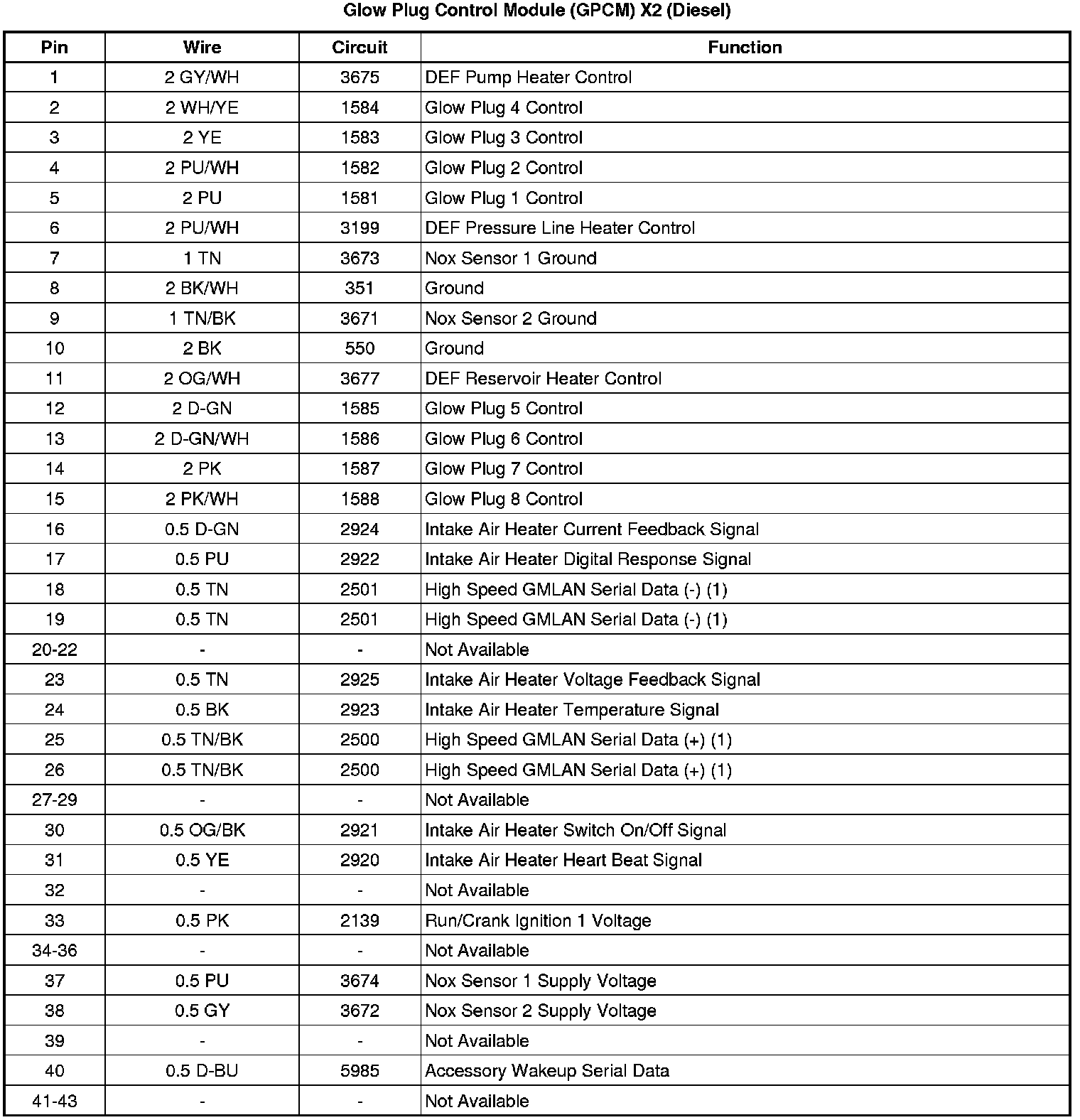

Glow Plug Control Module (GPCM) X2 (Diesel)
