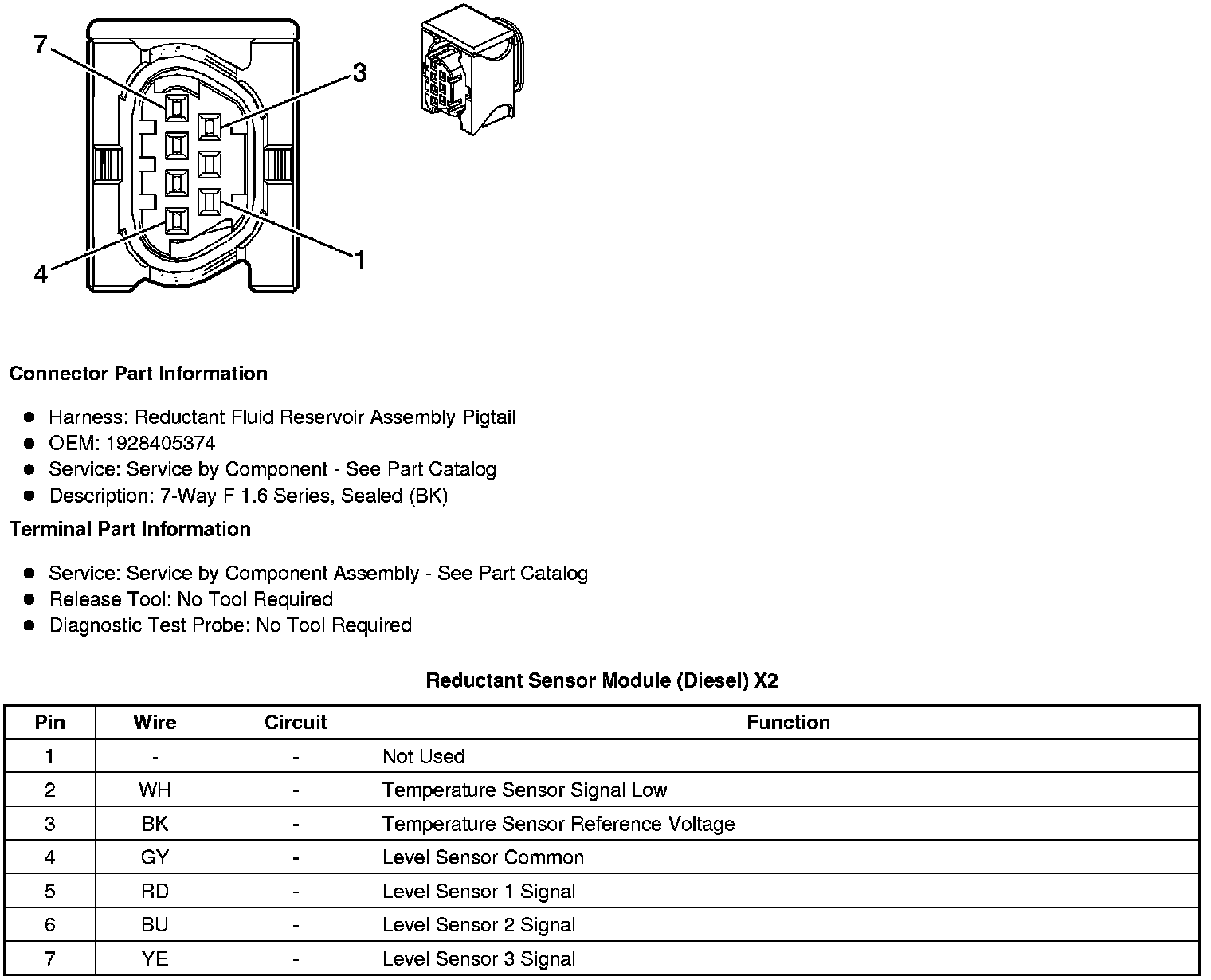

Home >> GMC >> 2012 >> Sierra 2500 2WD V8-6.6L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Relays and Modules - Emission Control Systems >> Diesel Emissions Fluid Control Module >> Diagrams >> Reductant Sensor Module X2
