Absolute Pressure Sensor: Diagrams

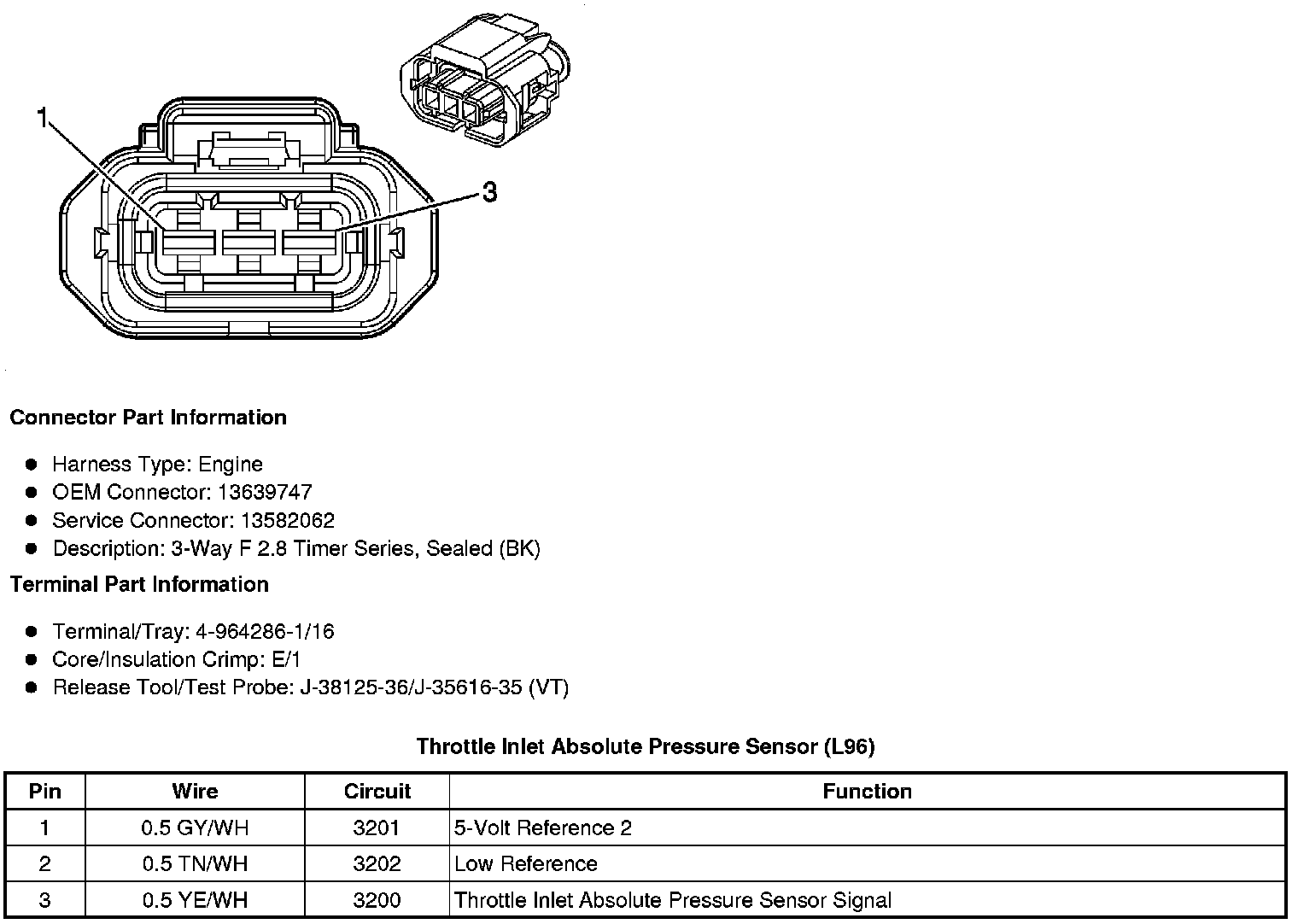

Component Connector End Views

Throttle Inlet Absolute Pressure Sensor (L96)
