Transfer Case Neutral Switch (NP1)
Transfer Case Neutral Switch (NP1)

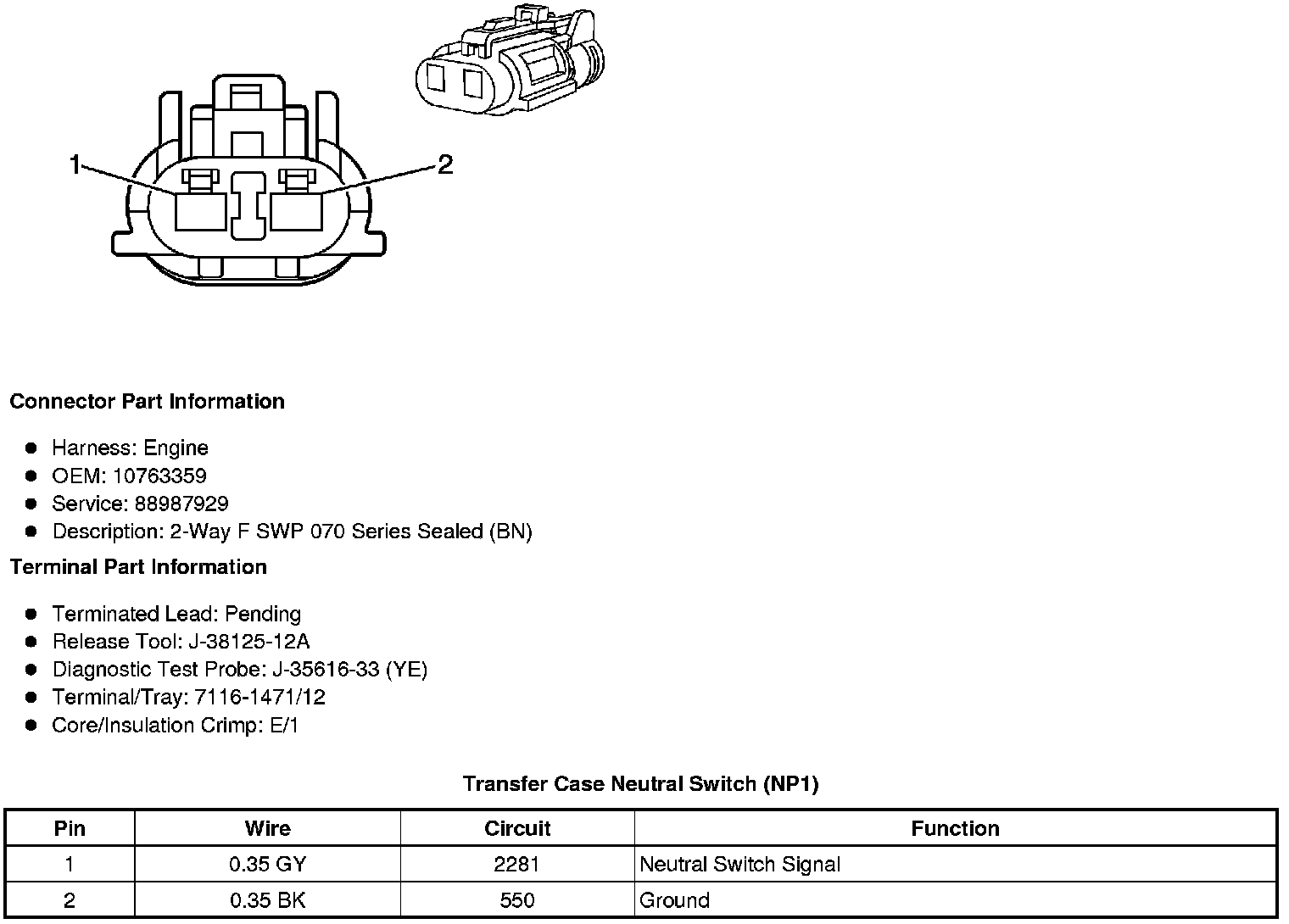

Component Connector End Views
Transfer Case Neutral Switch (NP1)
