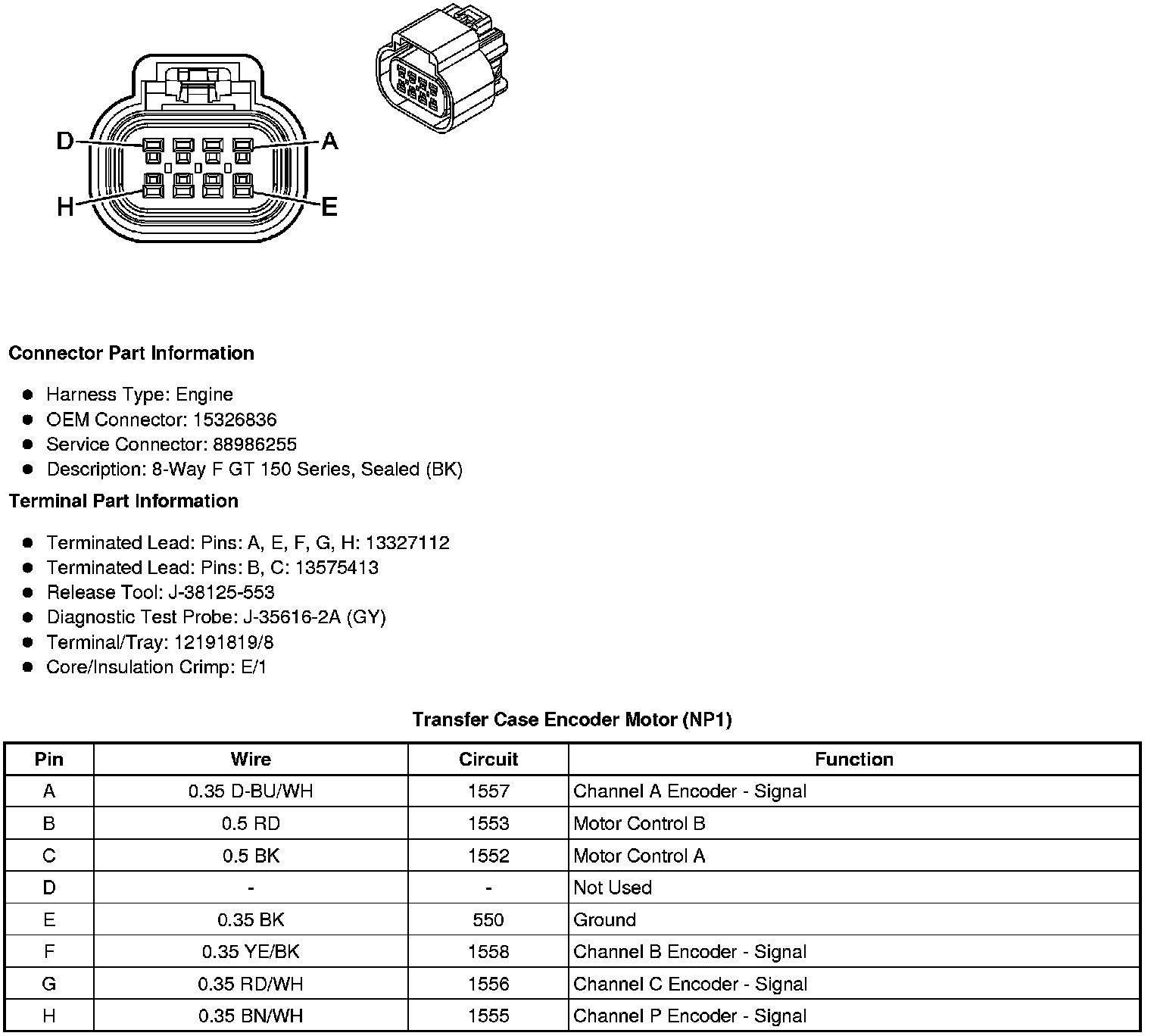

Transfer Case Encoder Motor (NP1)
Transfer Case Encoder Motor (NP1)
Component Connector End Views
Transfer Case Encoder Motor (NP1)
