Trunk / Liftgate Switch




Component Connector End Views

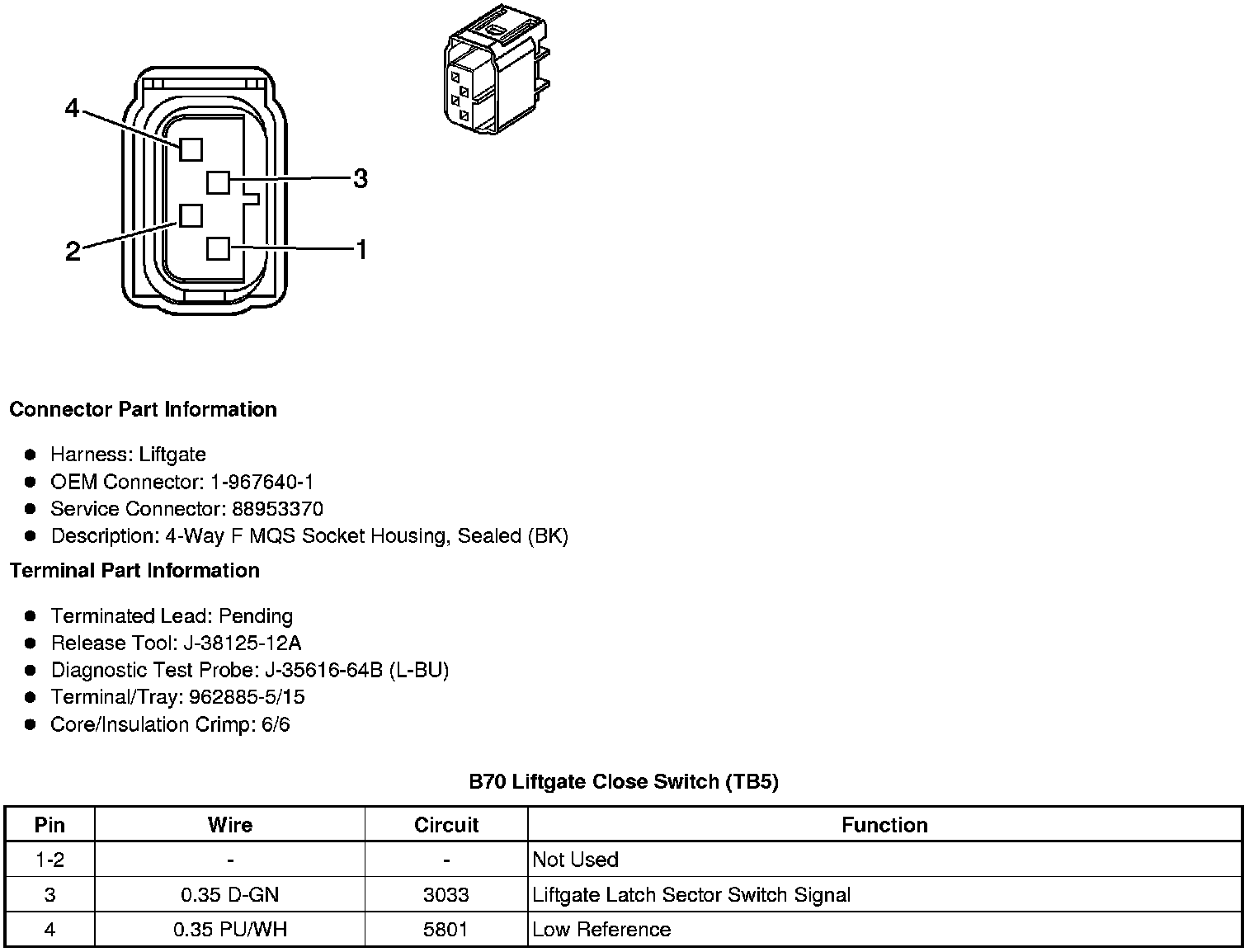

B70 Liftgate Close Switch (TB5)

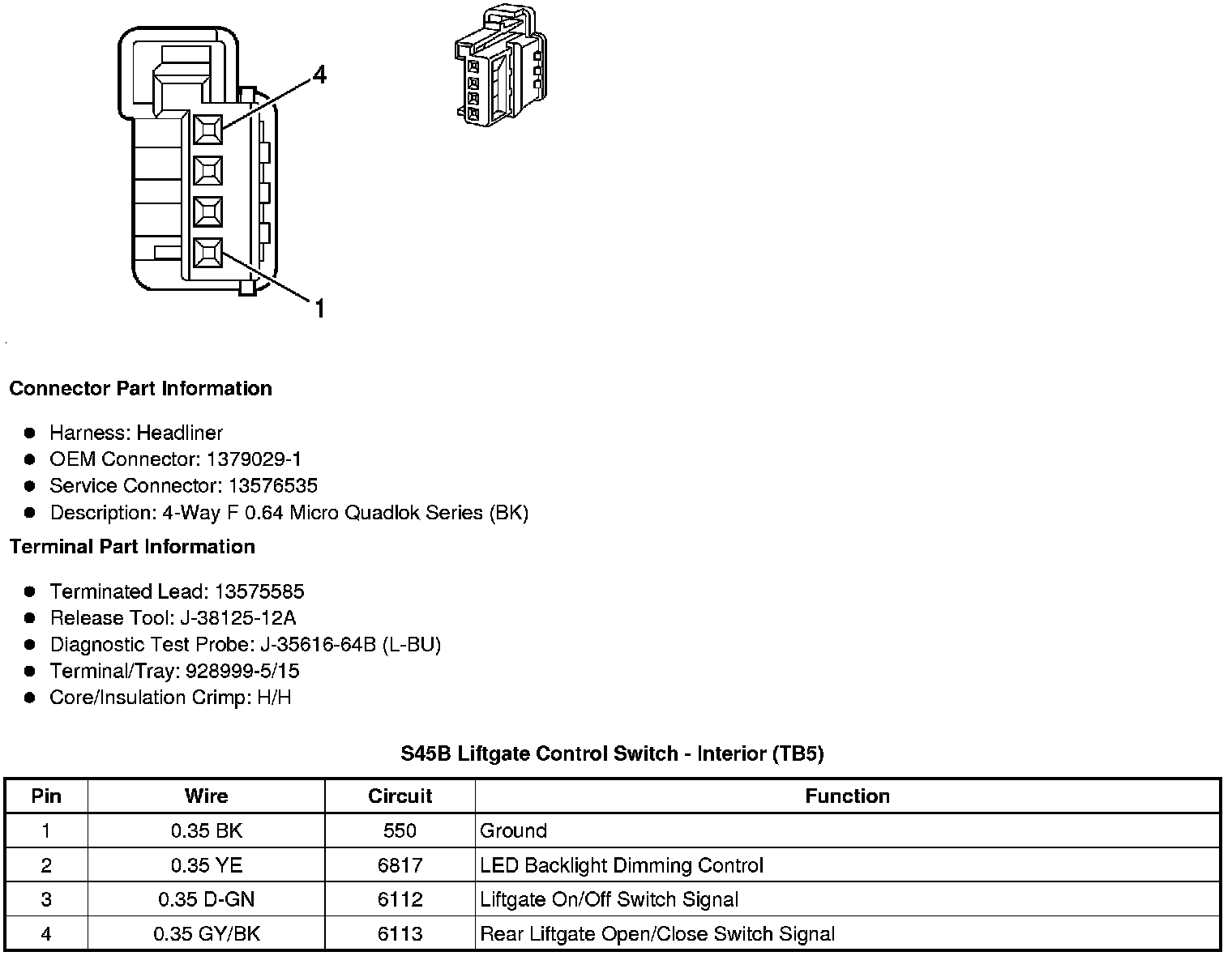

S45B Liftgate Control Switch - Interior (TB5)

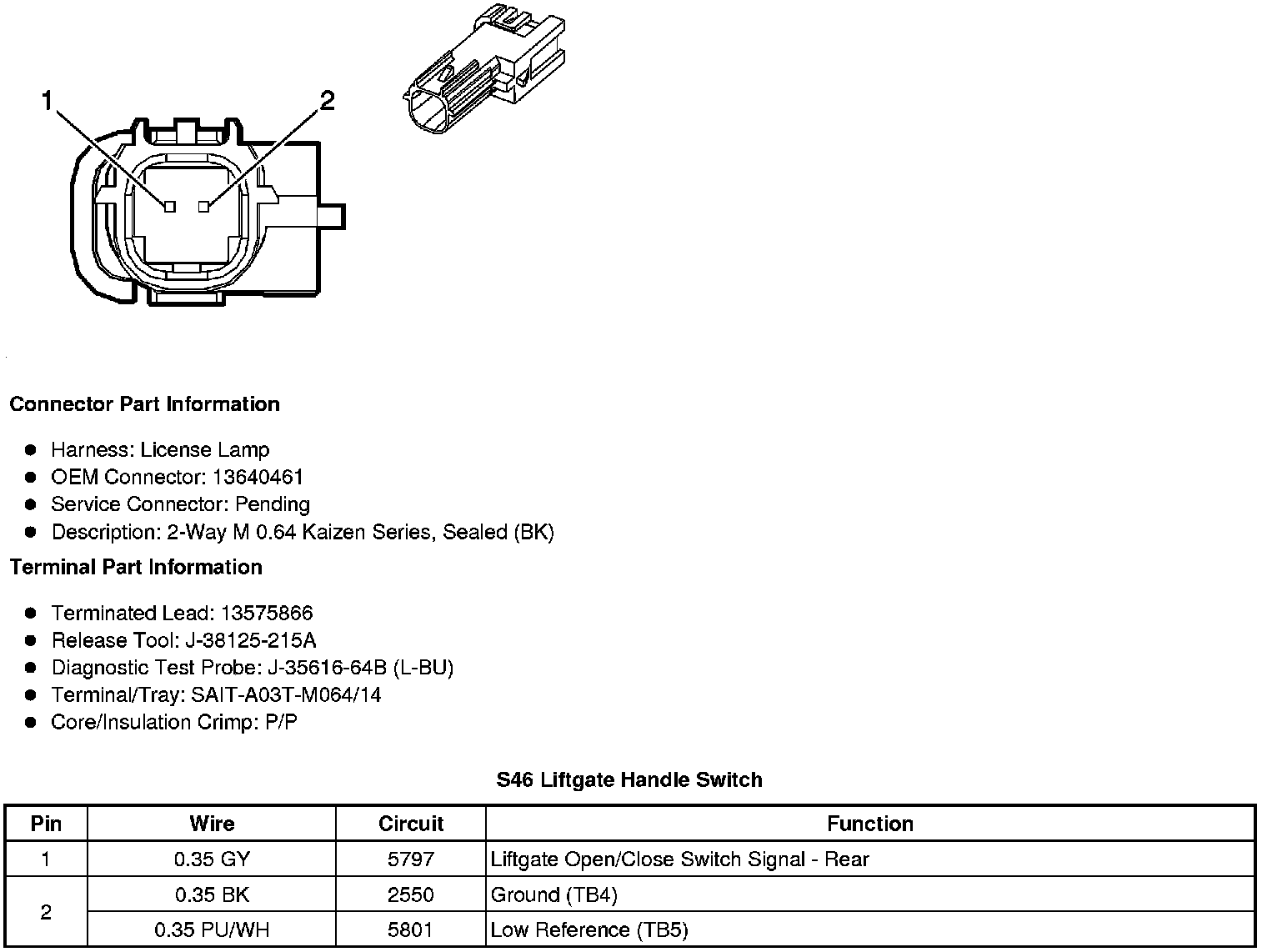

S46 Liftgate Handle Switch
