Home >> GMC >> 2011 >> Terrain FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Light Bulb

Backup Light Bulb




Component Connector End Views

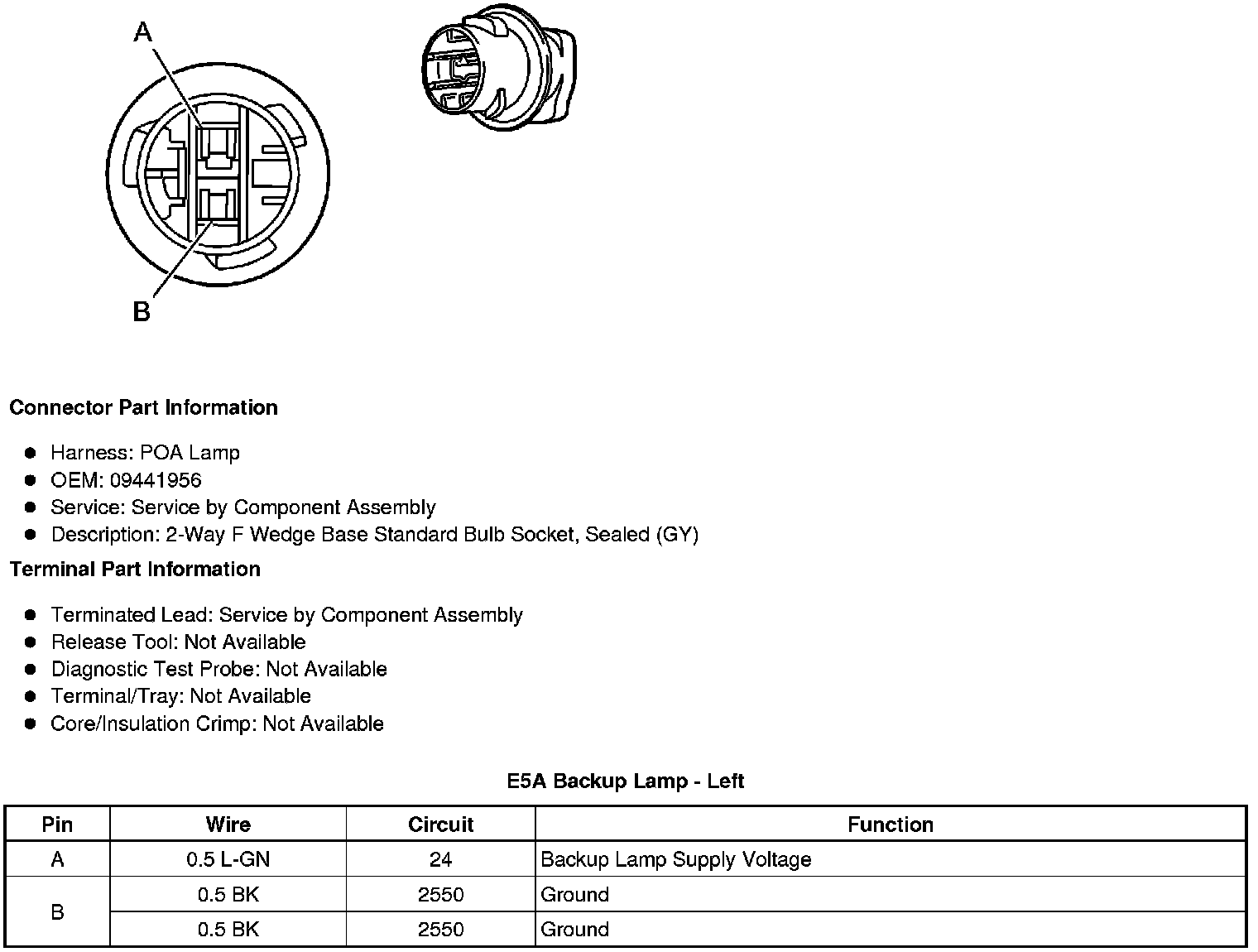

E5A Backup Lamp - Left

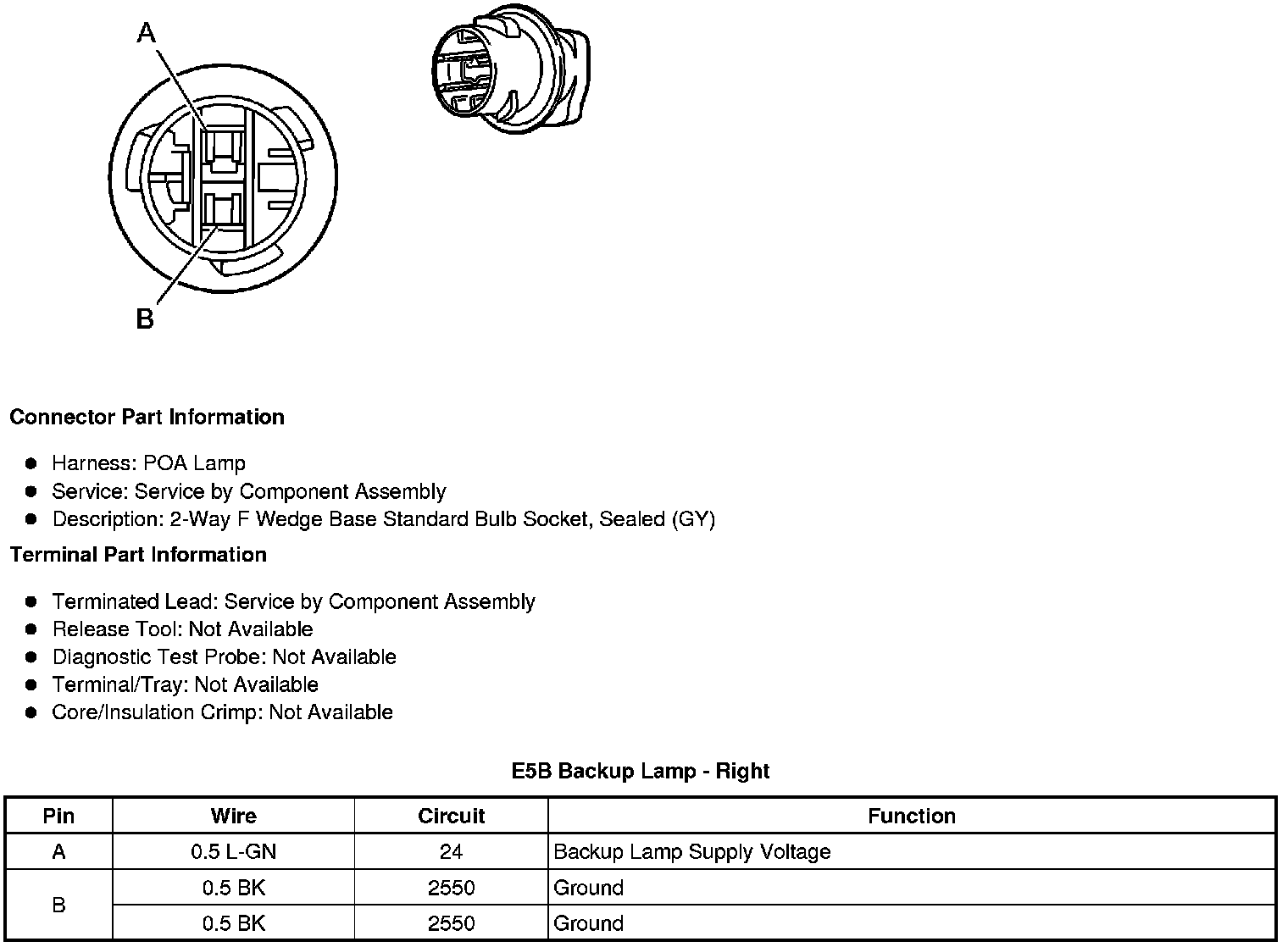

E5B Backup Lamp - Right
