Auxiliary Input / Output Jack, Entertainment System

Component Connector End Views

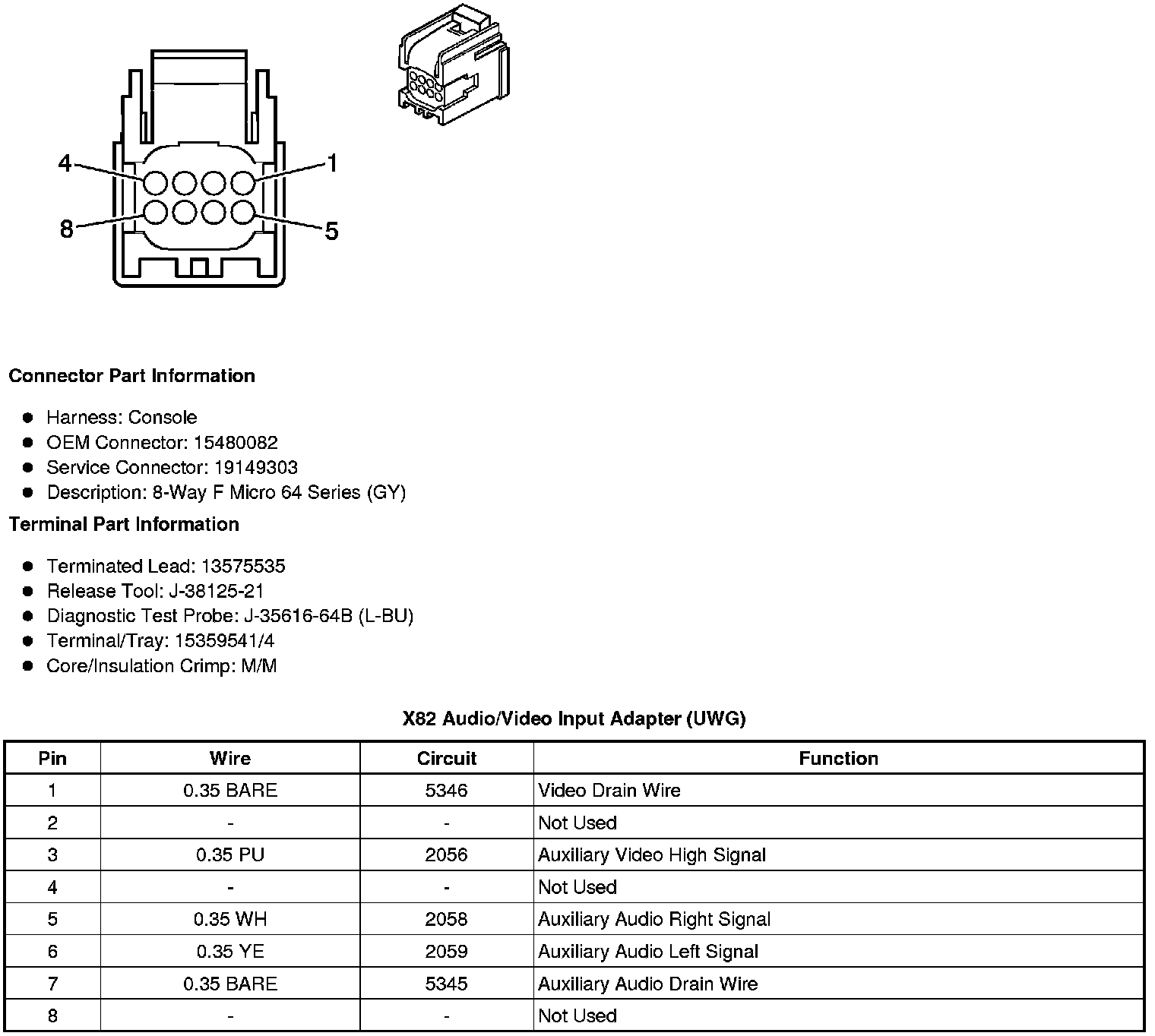

X82 Audio/Video Input Adapter (UWG)

X83 Auxiliary Audio Input (without UWG)
