Amplifier, Sound System
Amplifier, Sound System
Component Connector End Views

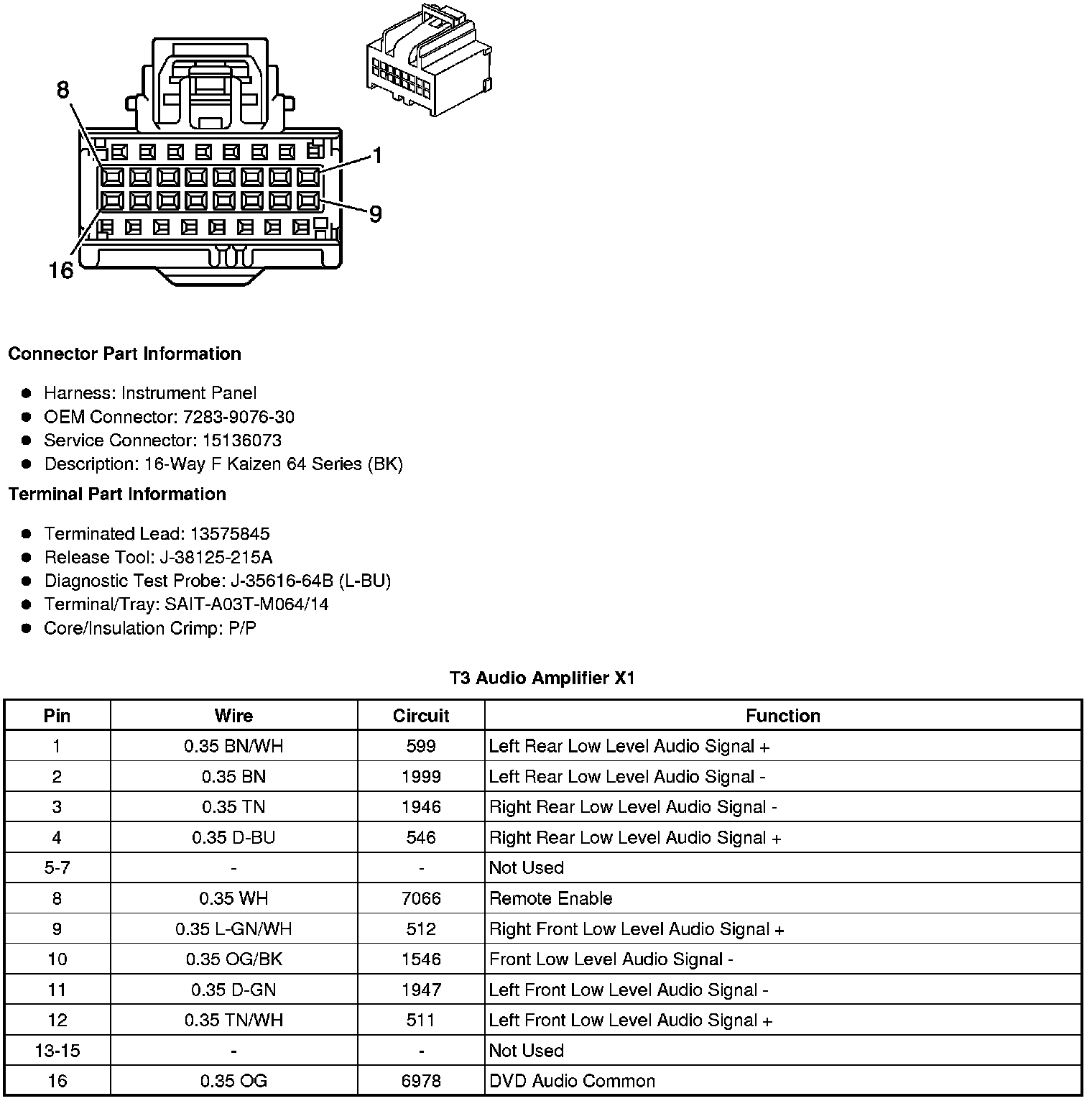

T3 Audio Amplifier X1

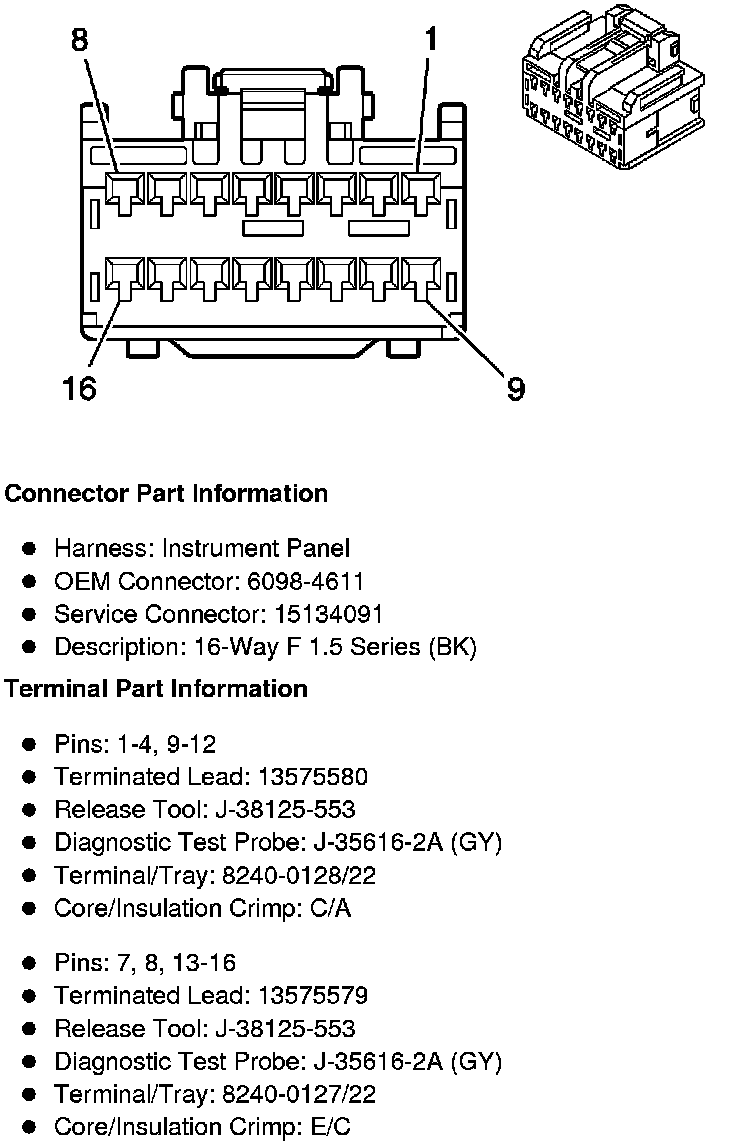

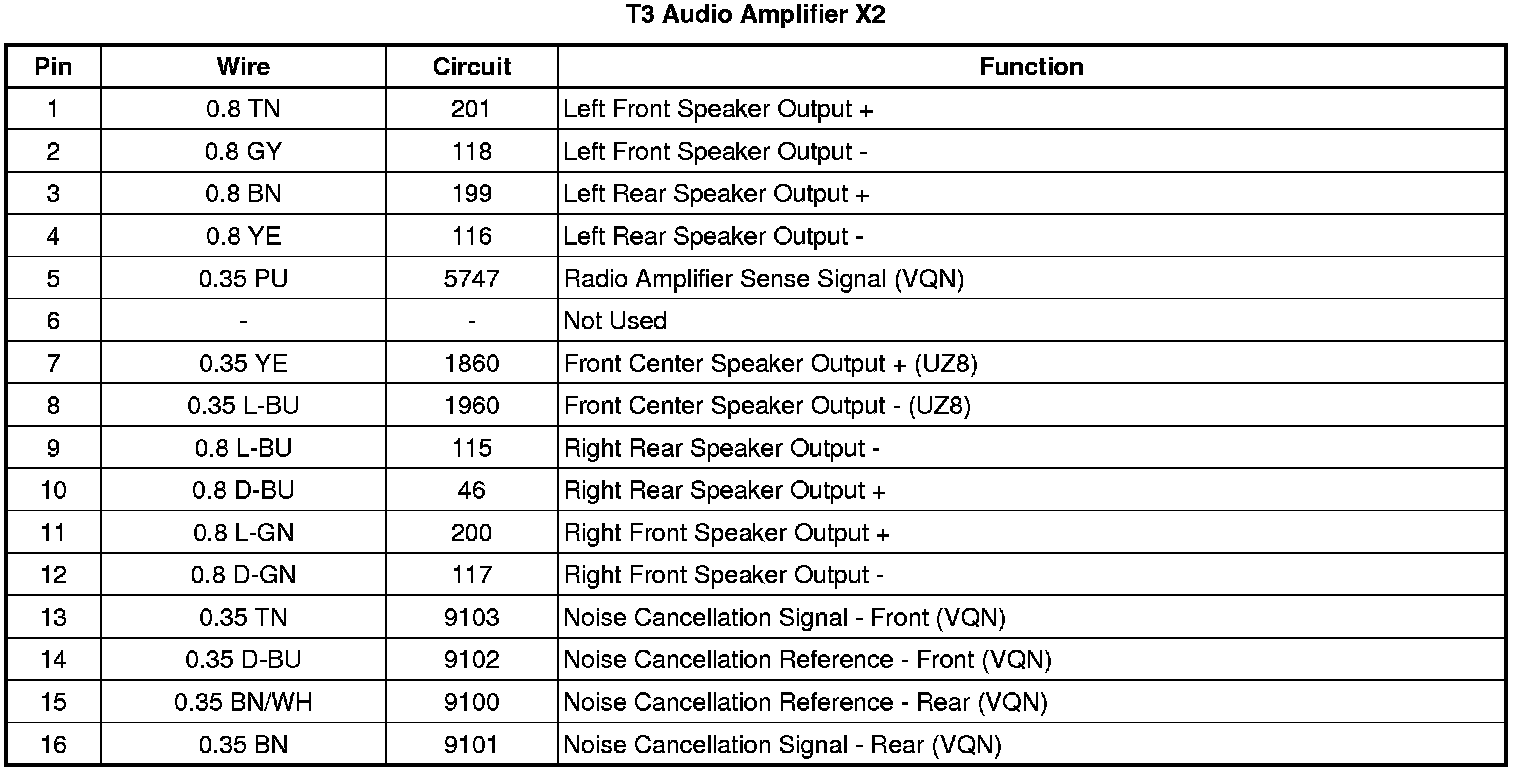

T3 Audio Amplifier X2

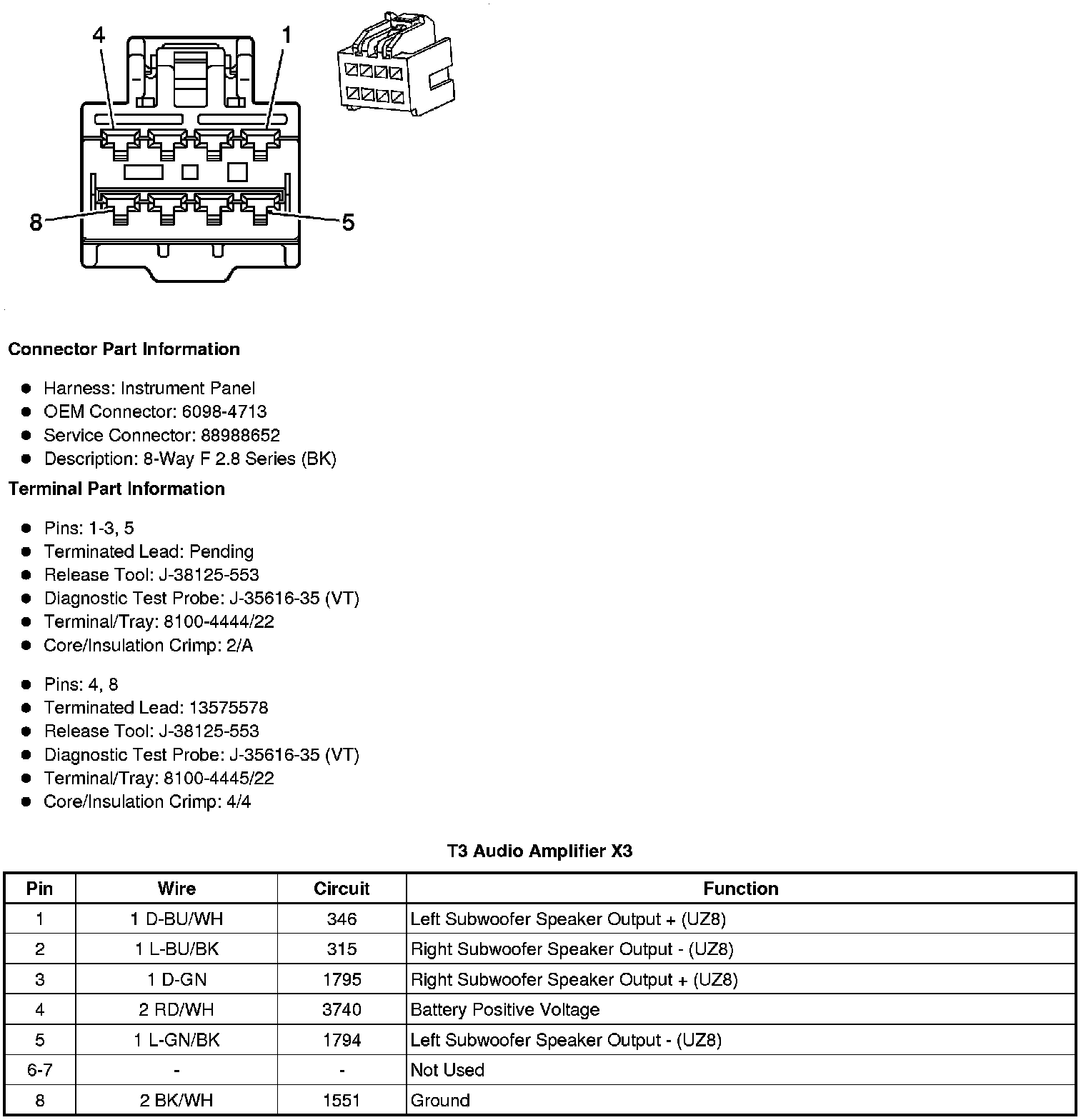

T3 Audio Amplifier X3
