Control Unit: Diagrams




Component Connector End Views

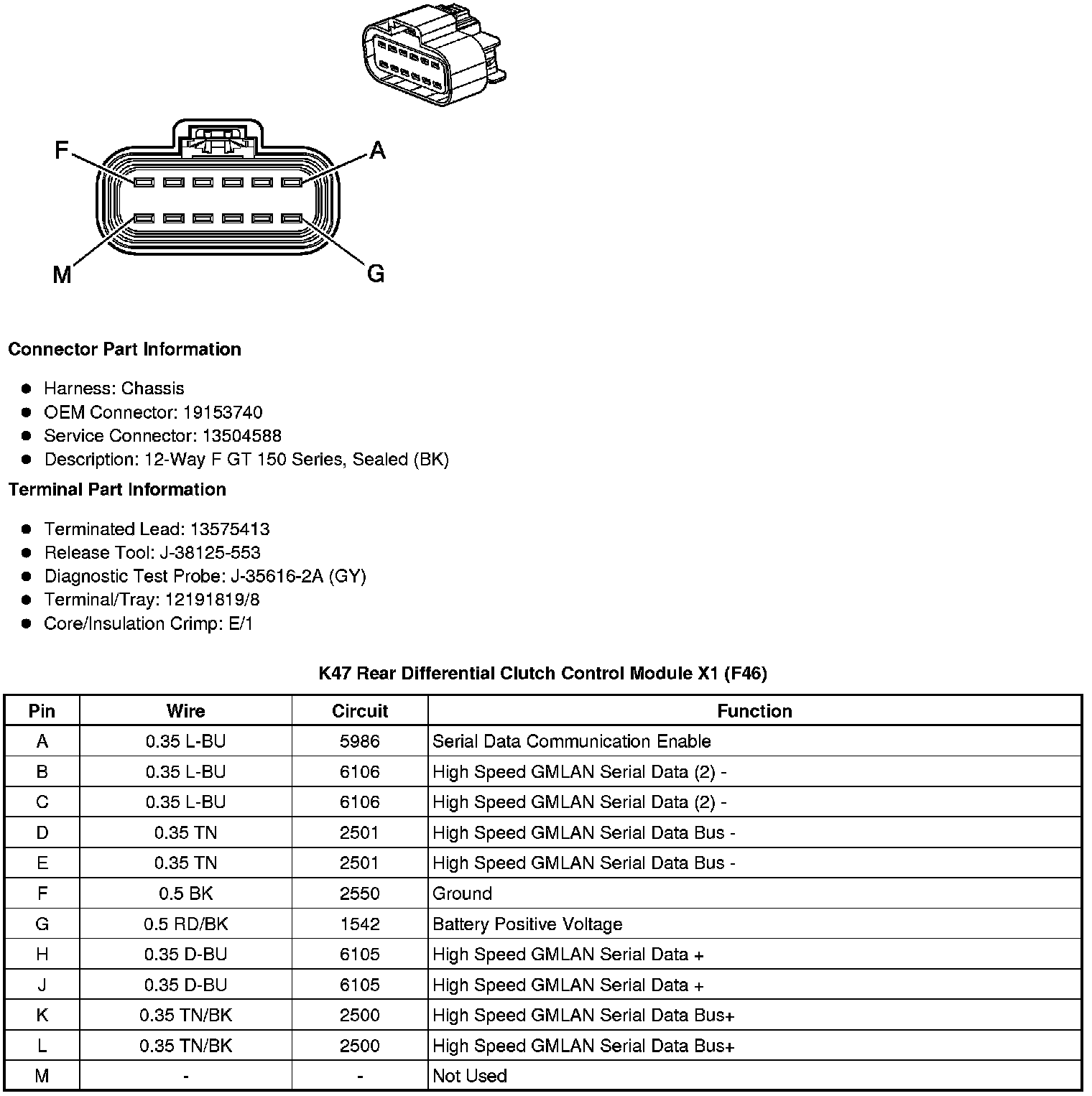

K47 Rear Differential Clutch Control Module X1 (F46)

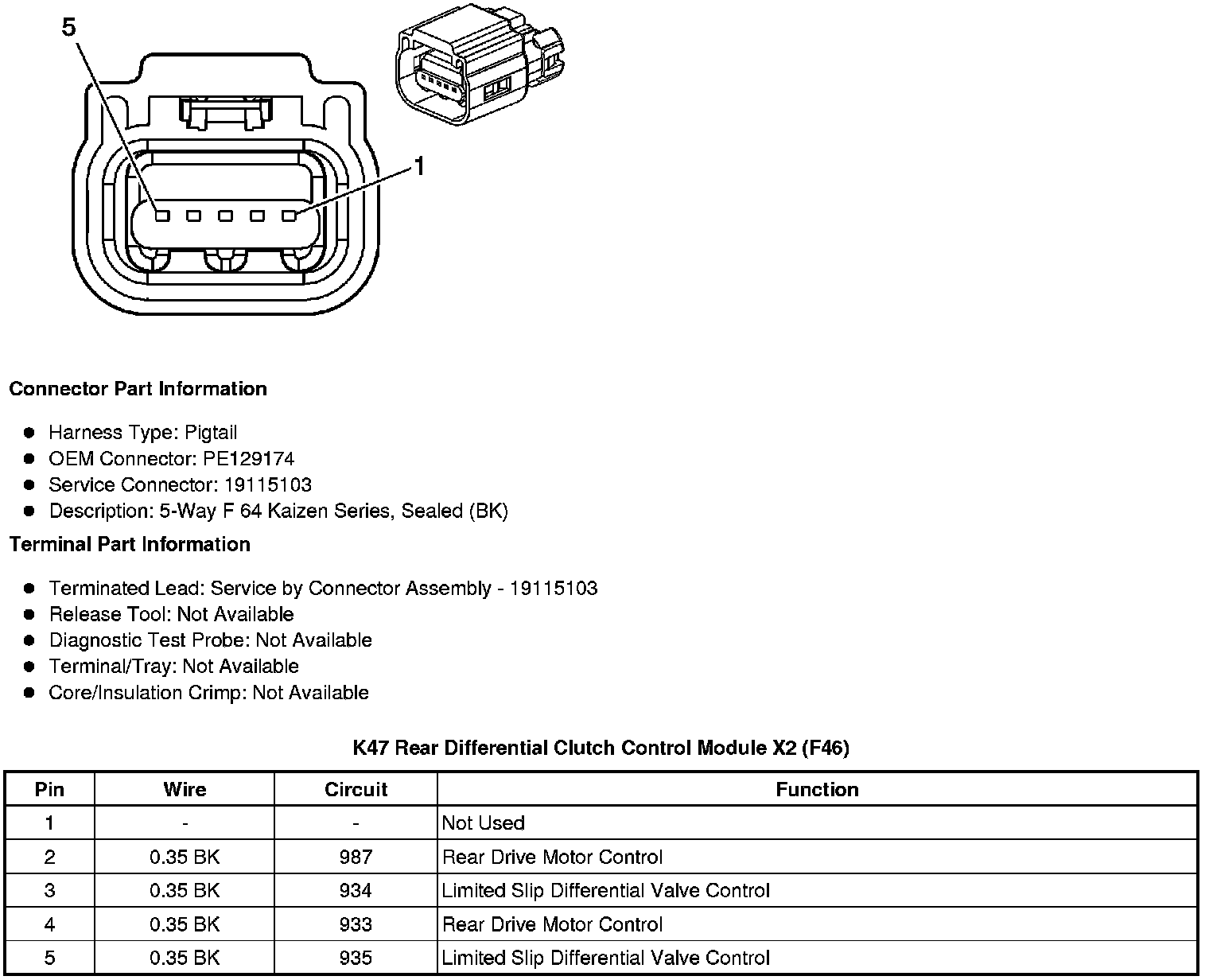

K47 Rear Differential Clutch Control Module X2 (F46)
