Starter Motor: Diagrams




Component Connector End Views

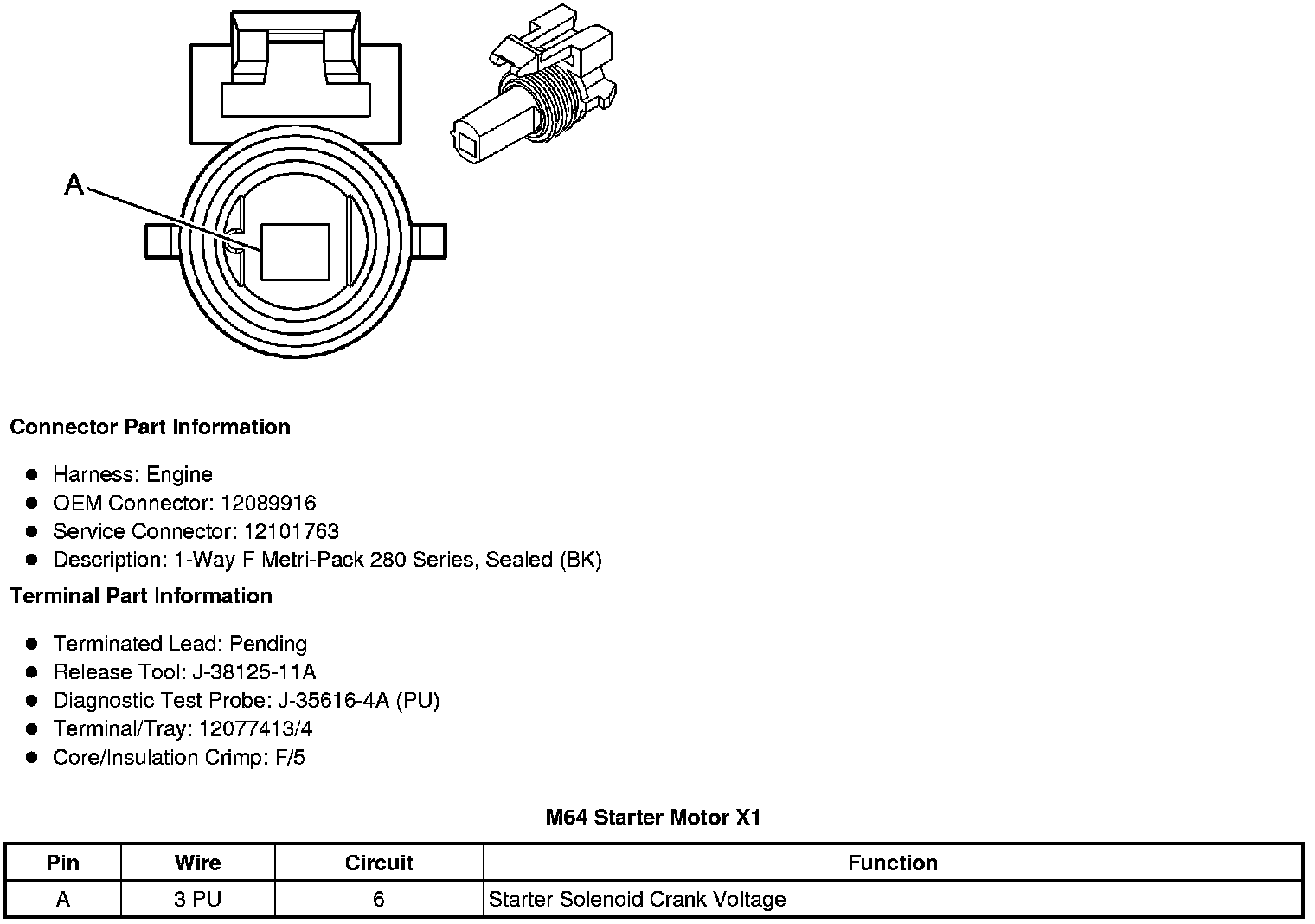

M64 Starter Motor X1





M64 Starter Motor X2 (Generator Harness) (LAF)









M64 Starter Motor X2 (Generator Harness) (LFW)









M64 Starter Motor X2 (Positive Battery Cable) (LAF)









M64 Starter Motor X2 (Positive Battery Cable) (LFW)
