Ignition Coil: Diagrams




Component Connector End Views

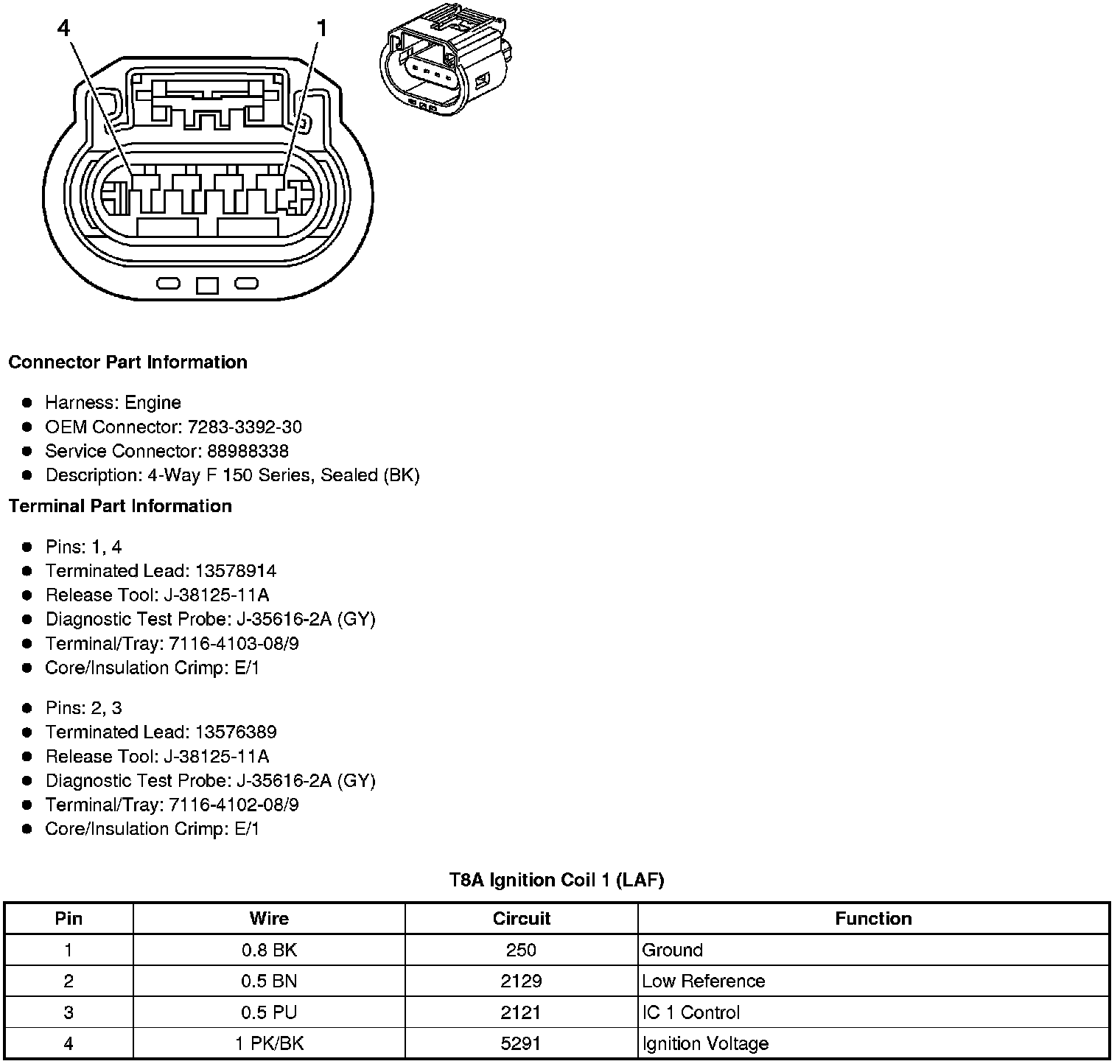

T8A Ignition Coil 1 (LAF)

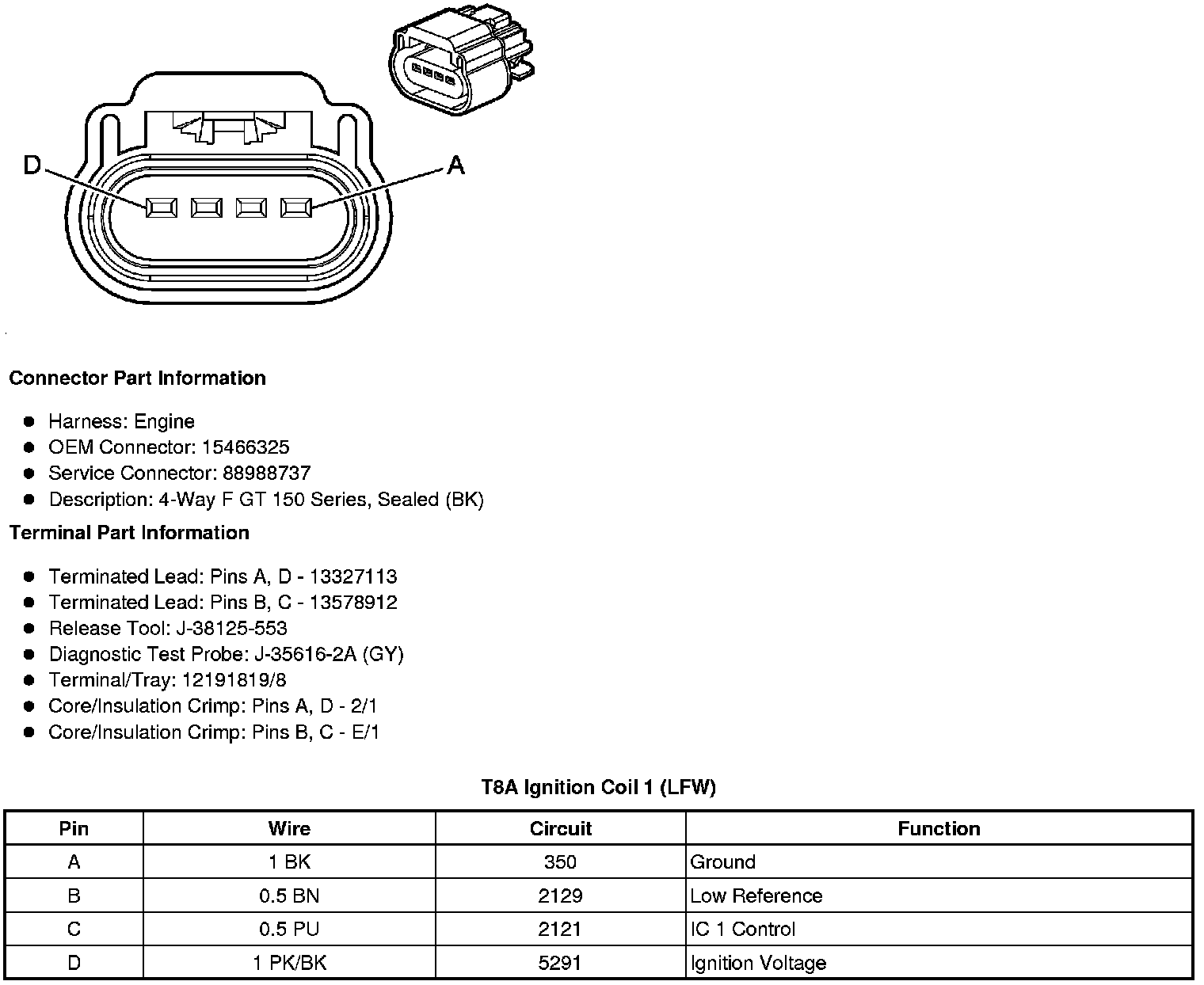

T8A Ignition Coil 1 (LFW)

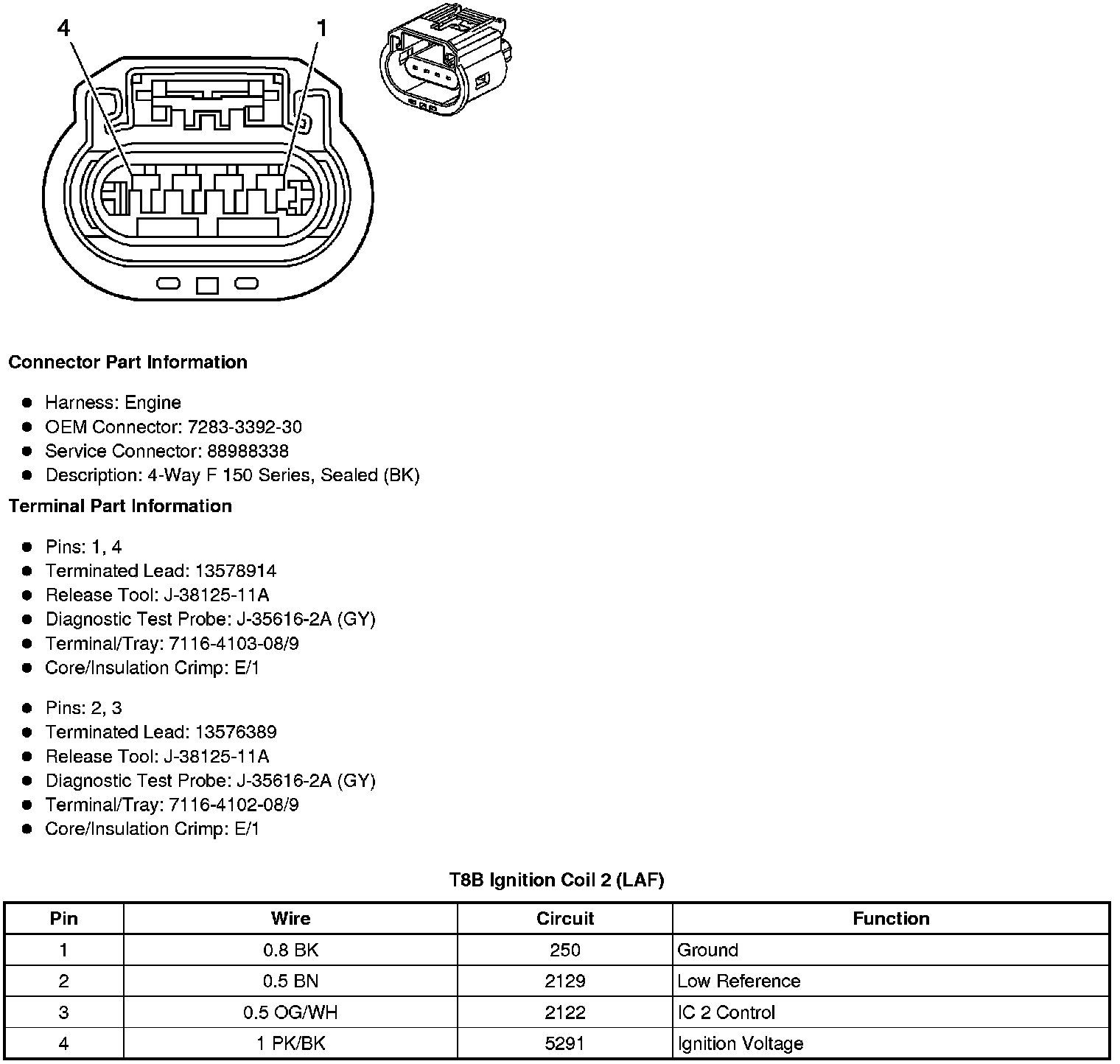

T8B Ignition Coil 2 (LAF)





T8B Ignition Coil 2 (LFW)

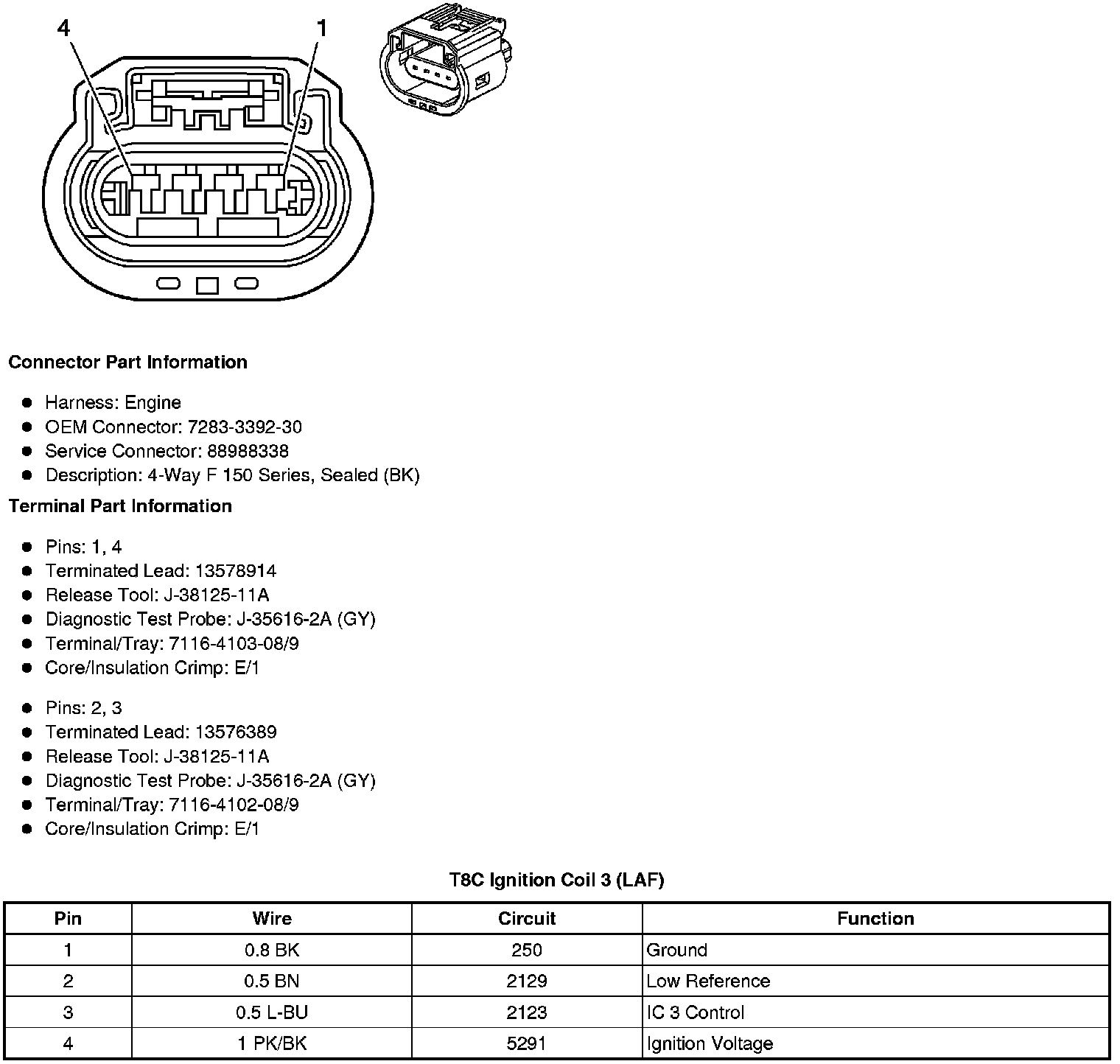

T8C Ignition Coil 3 (LAF)





T8C Ignition Coil 3 (LFW)





T8D Ignition Coil 4 (LAF)

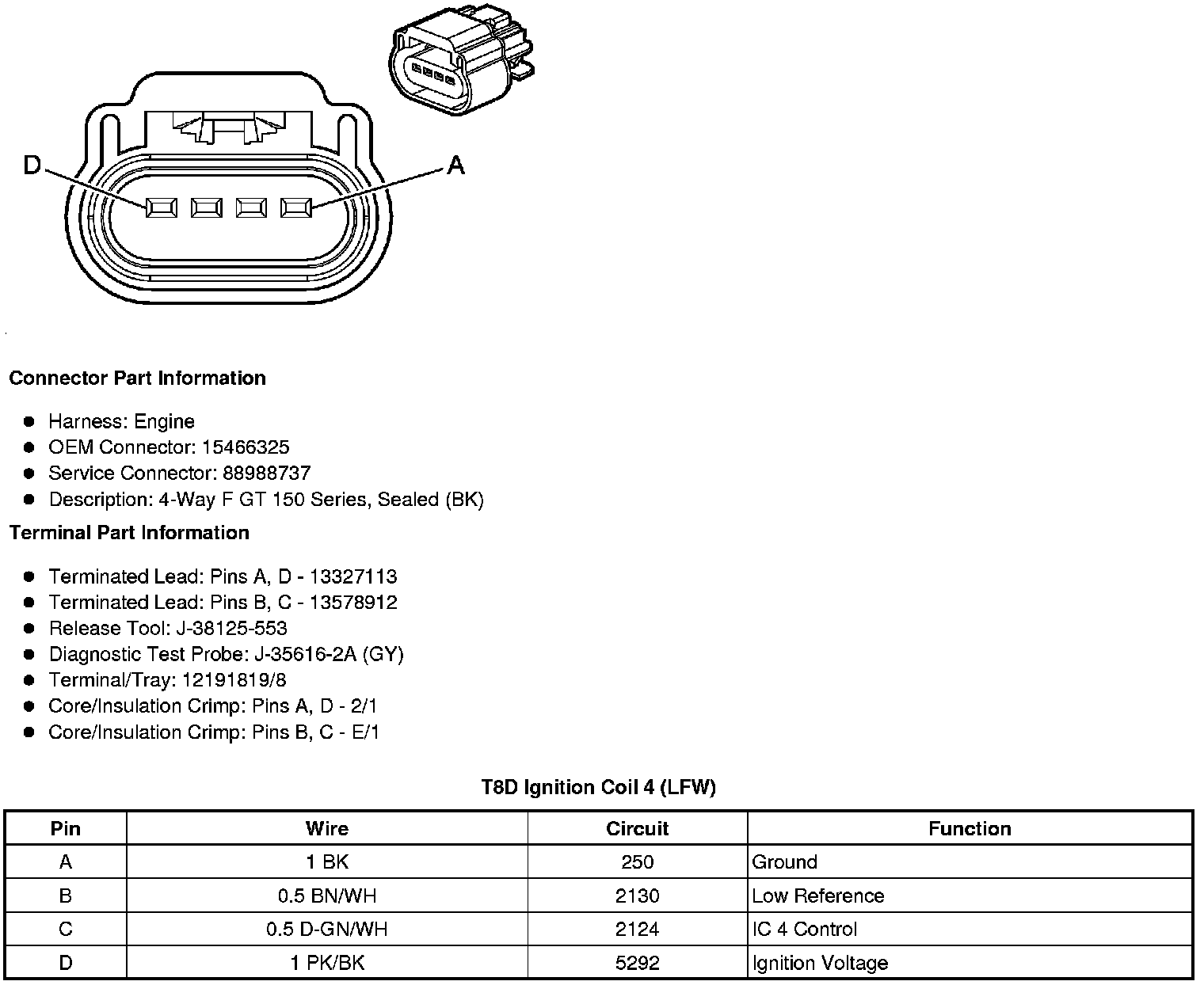

T8D Ignition Coil 4 (LFW)





T8E Ignition Coil 5 (LFW)





T8F Ignition Coil 6 (LFW)
