Fuse Block - Instrument Panel

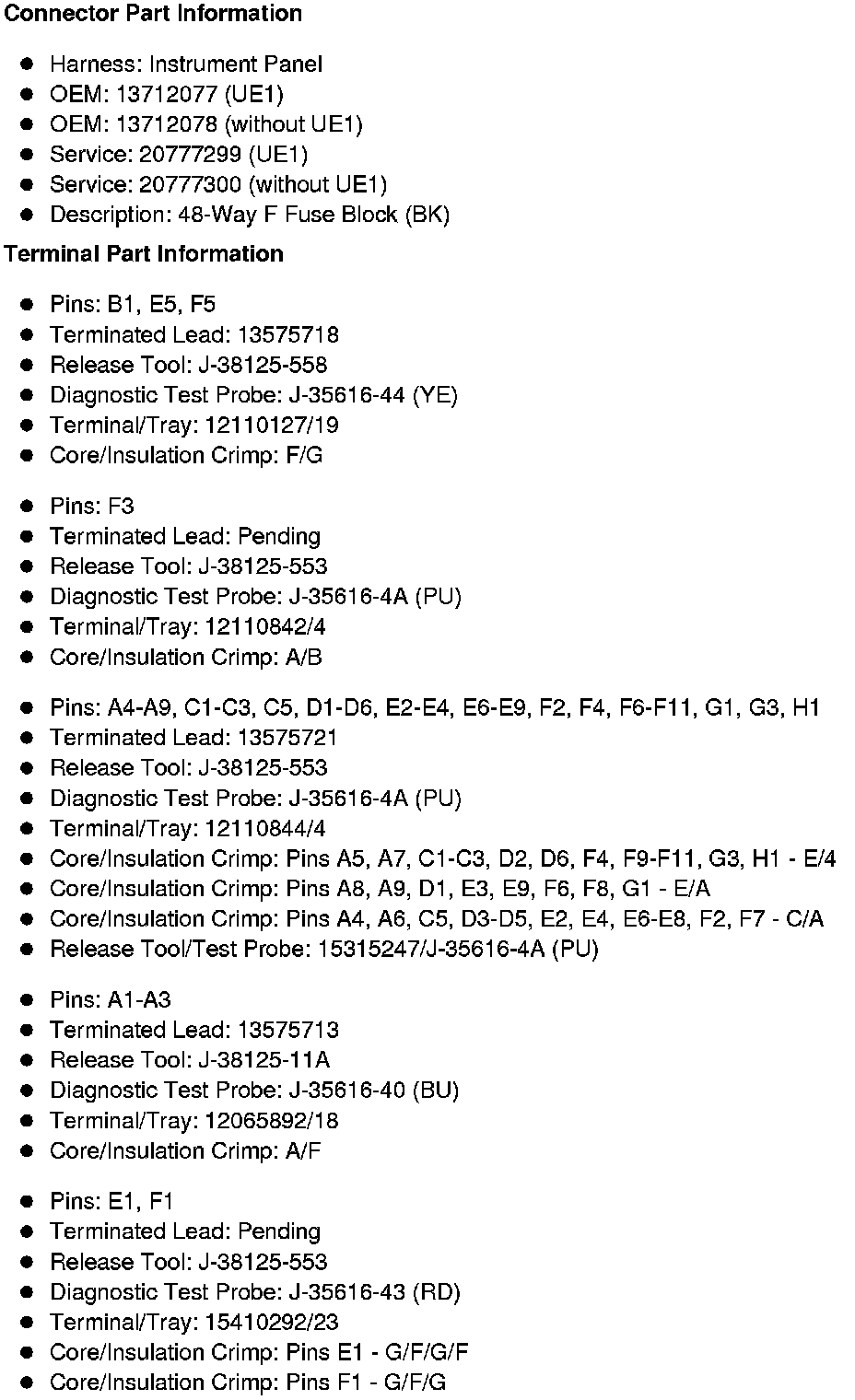

Electrical Center Identification Views

X51A Fuse Block - Instrument Panel Label









X51A Fuse Block - Instrument Panel, Top View





X51A Fuse Block - Instrument Panel, Bottom View

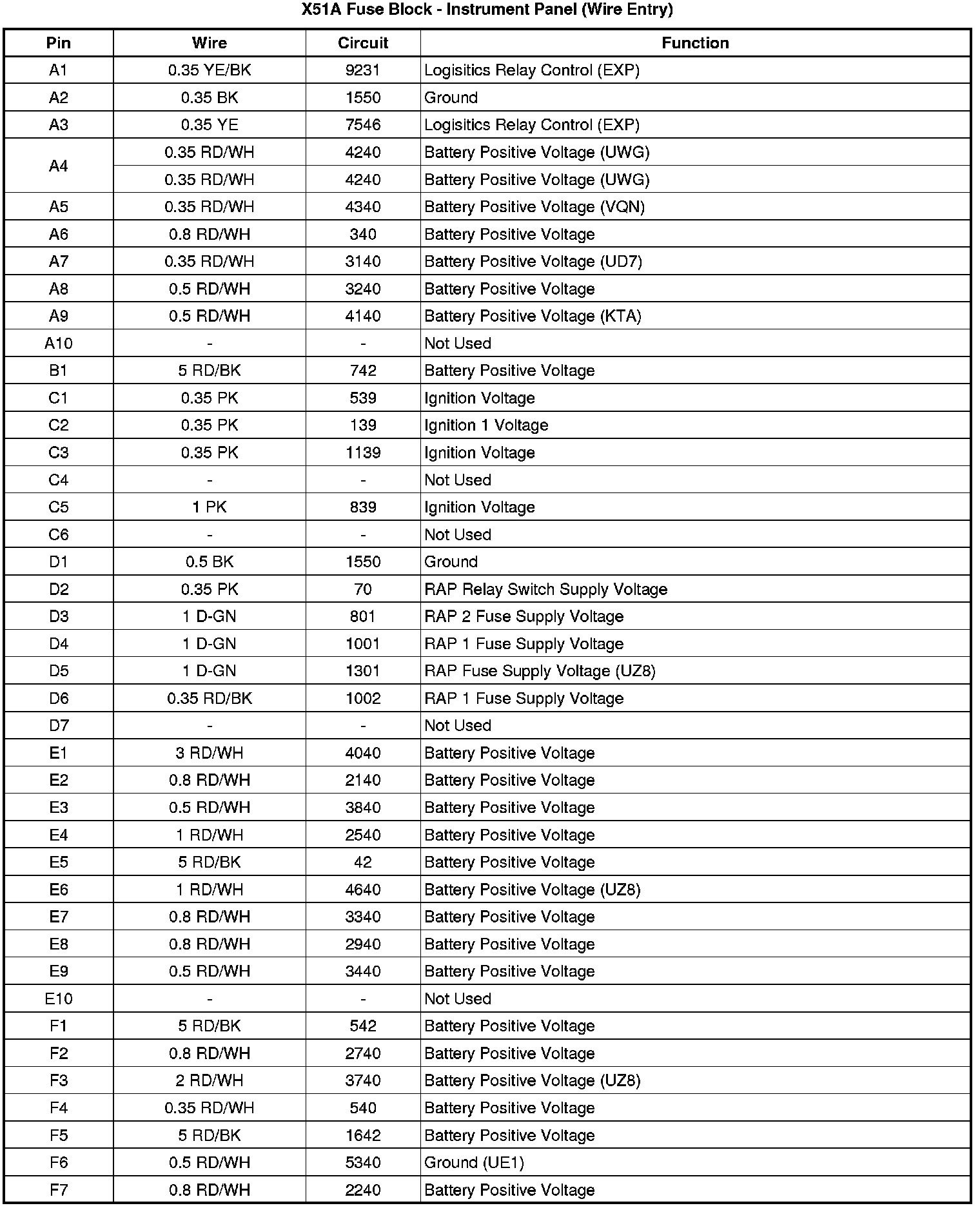

X51A Fuse Block - Instrument Panel Wire Entry
