Multi-Axis Acceleration Sensor B119
Multi-Axis Acceleration Sensor B119
Component Connector End Views

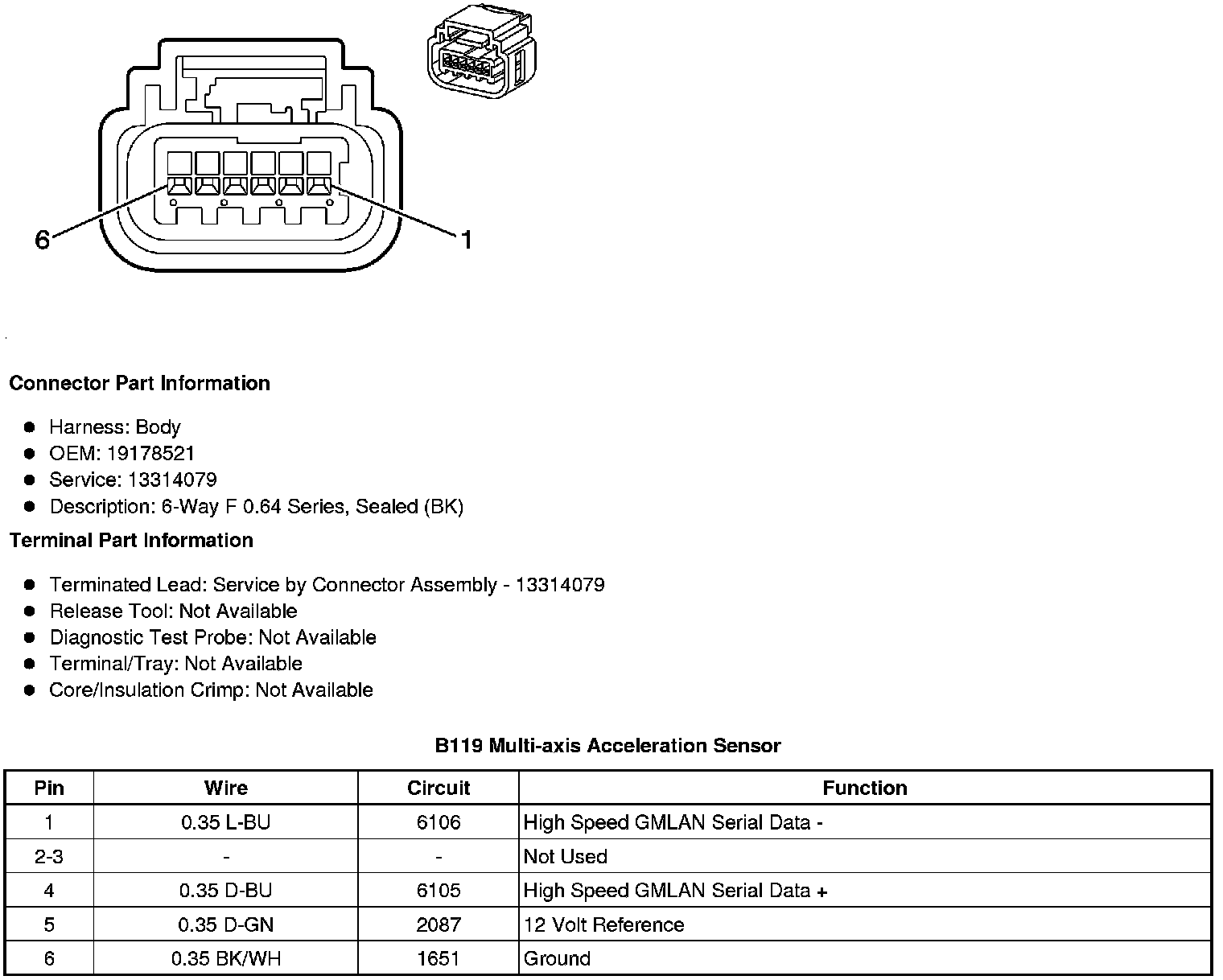

B119 Multi-axis Acceleration Sensor
