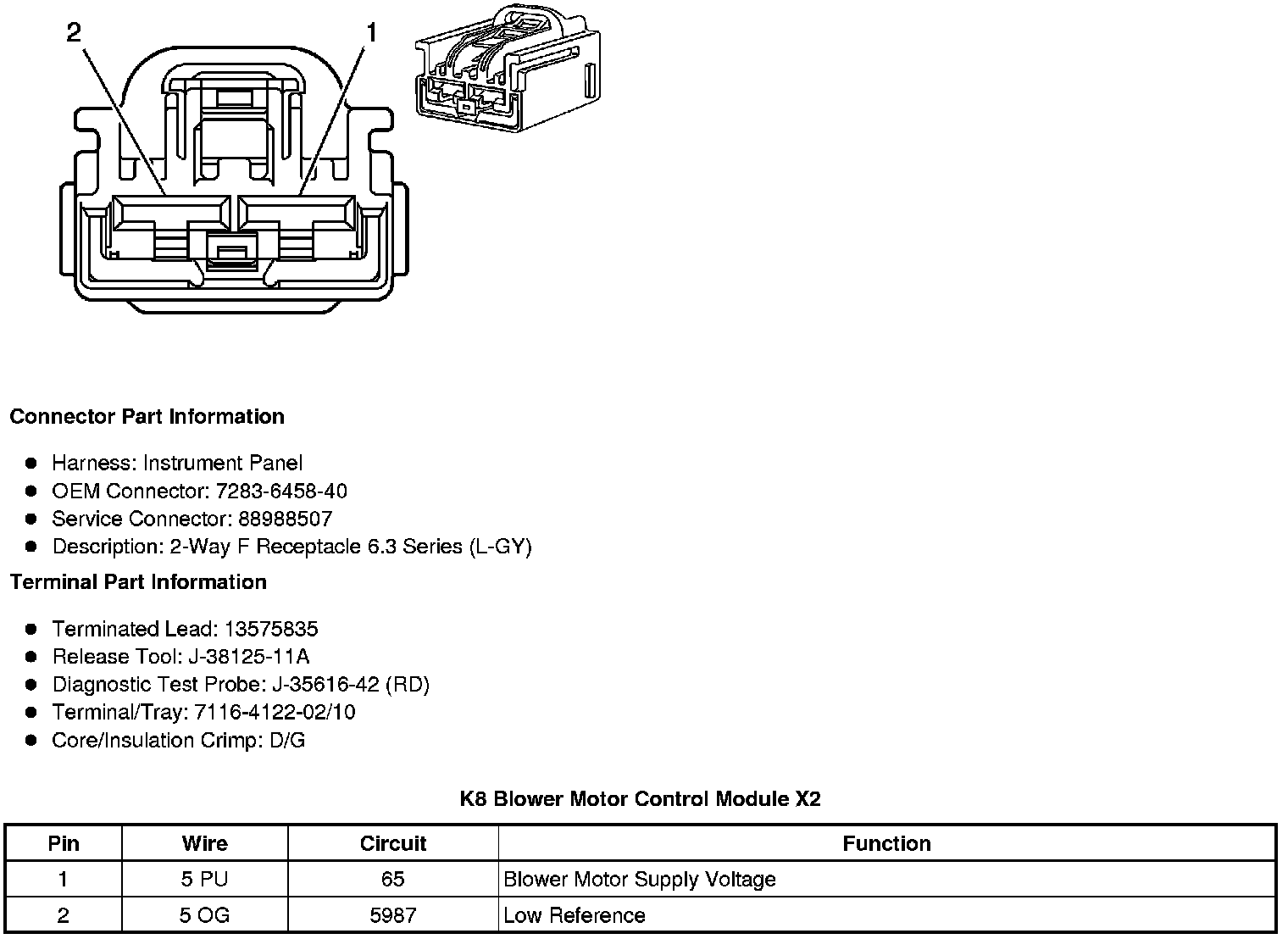

Blower Motor Control Module X2 K8




Component Connector End Views

K8 Blower Motor Control Module X2
