Starter Relay: Locations

Harness Routing Views

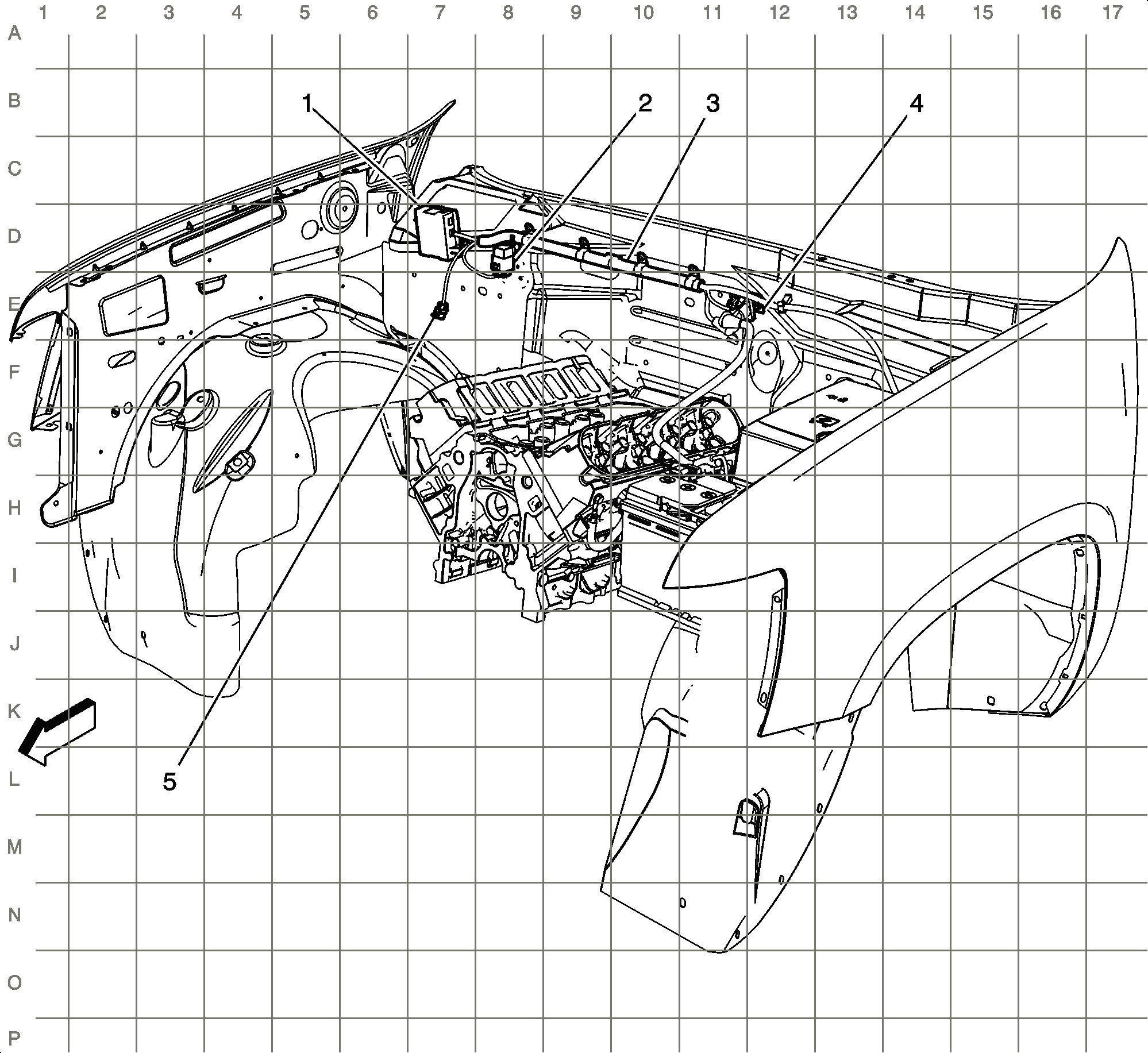

Auxiliary Battery Harness Routing (TP2)




1 - Fuse Holder
2 - Auxiliary Battery Run Relay
3 - Auxiliary Battery Harness
4 - Auxiliary Battery Relay
5 - X122
